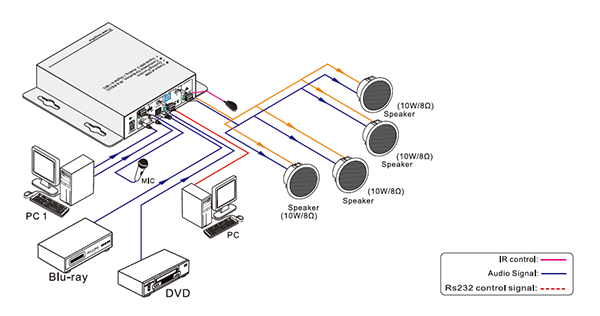

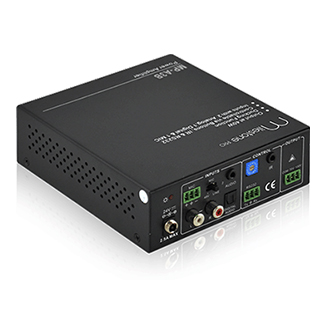

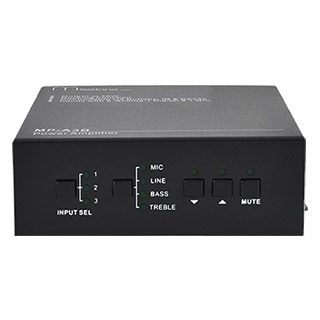

MP-A3B is a 40Watt constant voltage amplifier, with 70V or 100V outputs for option. It is with 3 line & 1 MIC inputs, which supports EQ control & MIC mixing.
Features:
3 switchable audio inputs: 1 digital and 2 analog.
One 3-mode MIC input with mixer function, condenser MIC supported.
40W output, compatible with 100V and 70V
Ducking function.
Bass, treble and volume adjustable
Locking power adaptor.
ID identification for RS232 looping control
Controllable via button, RS232, and IR (IR-kit for option)
Specification
Audio Input
2 stereo (RCA, 3.5mm jack),>10KΩ;
1 digital audio (SFP fiber connector);
1 MIC (captive screw connector);
