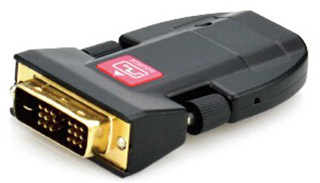

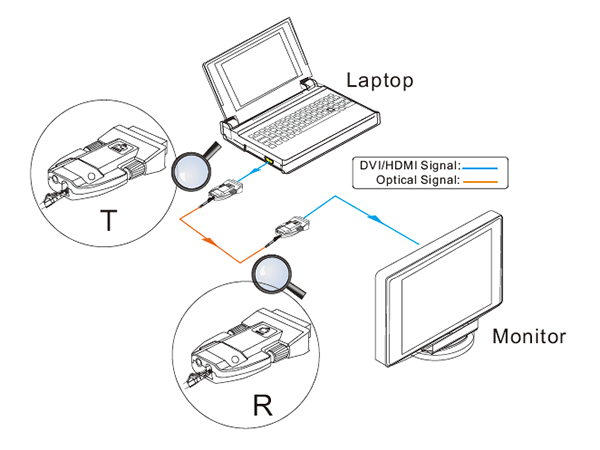

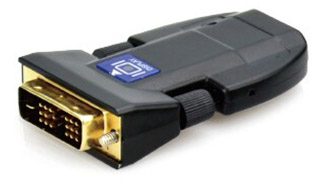

MP-DVFB-4K is a mini 4K HDMI optical fiber extender, which contains a transmitter module and a receiver module. Compatible with HDMI1.4, it transmits high-definition HDMI (max 3840x2160@30Hz) signal up to 300m / 400m over qualified OM3 multimode / single mode fiber-optic cable.

Features:

Bandwidth up to 10.2Gbps
Support HDMI1.4, 4Kx2K & 1080P 3D
984ft (300m) transmission over multi-mode fiber, 0.62mi (1km) over single-mode fiber
Manual EDID management

Specification

Input (MP-DVFB-4KT)	1 x DVI (Male)
Output (MP-DVFB-4KT)	1 x Optical (LC)
Input (MP-DVFB-4KR)	1 x Optical (LC)
Output (MP-DVFB-4KR)	1 x DVI (Male)
Resolution	4Kx2K@30Hz
Audio Format	PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard	HDMI1.4
Transmission Distance	10.2Gbps ≤1km via OM3 single-mode fiber
≤300m via OM3 multimode fiber	8.5dB (Min.)
Temperature	0 ~ 50ºC
Reference Humidity Power Supply	10% ~ 90% Input: AC 100~240V, 50/60Hz; Output: DC 5V 1A
Power Consumption	≤4.35w
Dimension	69.510.240 mm
Weight	0.126 Kg (Transmitter + Receiver)
