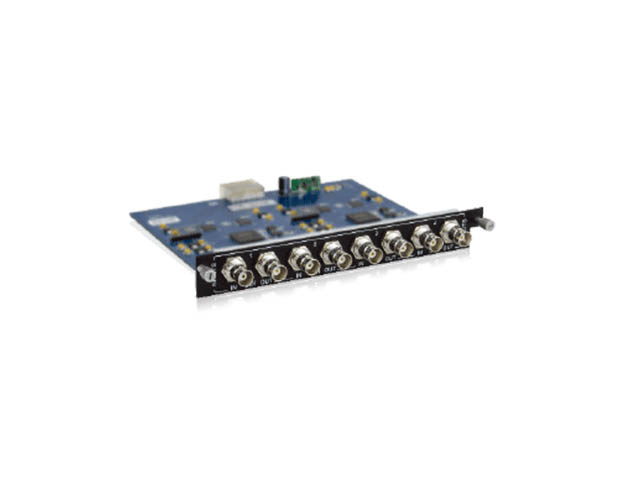

MPX4 IN SD

MPX4-IN-SD is a SDI input card working with MMX chassis, it has 4 SDI inputs and each input has a loop output. It is compatible with 3G-SDI, HD-SDI &SD- SDI.


Features:
  • Bandwidth up to 10.2Gbps
  • Support HDMI 1.4, 4Kx2K &. 1080p 3D
  • 4 Separate audio input to follow with the 4 HDMI inputs.
  • Smart EDID management
  • HDCP compatible
  • Fully compatible with DVI.
  • Hot-swappable, user-friendly
Specification
Input/output  4 SDI (Female BNC), 4 Loop
(Female BNC); 0.8Vp-p ± 10%; 75Ω
Signal Type SD-SDI, HD-SDI, 3G-SDI
Gain Unity
Transmission Distance 300m (Max.)
Maximum Data  rate   2.97Gbps, Auto Locked
Input Return Loss <-14 dB @ 1 MHz ~ 1.5 GHz
Data Type 8bit, 10bit
Video Standards SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601,
ITU-RBT.1120
