MP IP

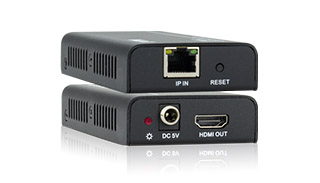

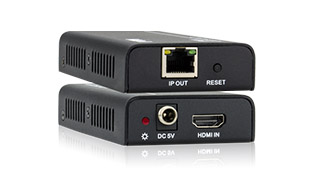

MP-IP are HD Video Streaming kits including encoder IPM11 and decoder IPM12, for real-time extending and distributing 1080p video up to 328ft (100m). Cascade connected with Ethernet switch, it can extend video for longer distance, and the encoder and decoder can get power from the switch as they support PoE.

Features:

High resolution up to 1080p@60Hz
Up to 328ft (100m), or longer by cascading with Ethernet switch

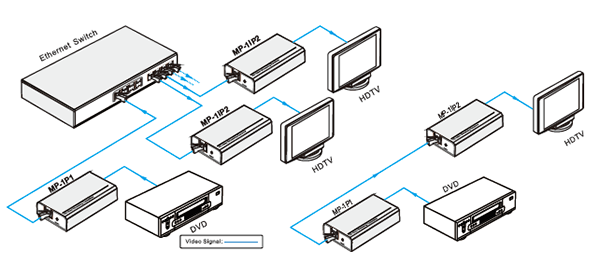

Support point to point or point multi-point (up to 250 Rx) distribution
Support PoE to get power from Ethernet switch
HDCP 1.3 compliant
Plug and play, make it easy to use
Locking power connector to avoid power connection loose

Specification

Input((IPM11)	1 HDMI (HMDI Female)
Output(IPM11)	1 IP (RJ45)
Input(IPM12)	1 IP (RJ45)
Output(IPM12)	1 HDMI (HMDI Female)
Resolution	1080P@60Hz (Max)
Min/ Max Signal Level	T.M.D.S. 2.9V~3.3V
Standards	Compliant with HDMI 1.3 & HDCP 1.3
Transmission Distance	328ft (100m)
Output Impedance	Differential 100Ω
Power Supply	DC 5V 1A
Power Consumption	IPM11: 4.2W IPM12: 3.5W
Temperature	0 ~ 50ºC
Humidity	10%~ 90%
Dimension	W121xH21xD60mm
Weight	80g
