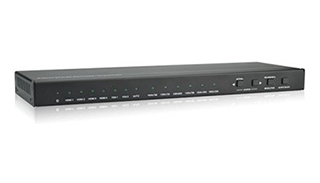

MP-SC-6E is a 4K Scaler switcher with 6 video inputs, including 4 HDMI, 2 VGA (with 3.5mm audio), 1 HDMI output with 3 audio de-embedded, controllable by button, IR, RS232.

Features:

Support 4K
VGA input compatible with YPbPr & C-video.
HDCP compliant
Support auto switching
Firmware updatable via USB
Compact design for easy flexible installation
Controllable via buttons, IR & RS232

Specification

Video Input	4HDMI(Female HDMI); 2VGA(Female 15pin HD); 0.5~2.0 Vp-p;75Ω
Video Input signal	HDMI, VGA
Video Output	1HDMI (Female HDMI); 0.5~2.0Vp-p; 75Ω
Video Output signal	HDMI
IR Input	1 IR IN (3.5 mm mini jack)
Audio Input	2x3.5mm stereo audio for VGA, >10KW;
Audio Output	1x3p phoenix L+R stereo output, 1x 3.5mm stereo output, 1x SPDIF Optical audio output
Resolution	1920x1200, 1920x1080, 1360x768, 1200x800,1024x768,1200x720 for VGA input; HDMI directly pass through;
Bandwidth	HDMI: 10.2Gbps, VGA: 375MHz
Maximum Pixel Clock	148.5MHz
Stereo Channel Separation	>80dB@1KHz
Control	Button, IR & RS232 (Captive screw connector)
Power Supply	DC 5±0.5 V; 8W
Temperature	0~50˚C
Humidity	10~90%
Chassis Dimension	W340xH28xD110mm
