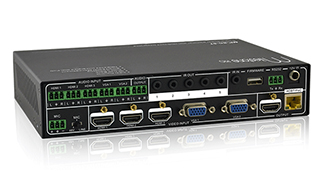

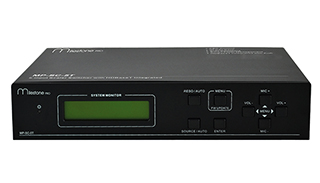

MP-SC-5T is a full HD scaler switcher with 5 video, 5 audio & 1 MIC inputs, it scales & switches any video signal to HDMI and HDBaseT outputs. It supports PoC to power Milestone Pro HDBaseT receiver MPTP-T70R up to 230ft (70m).

Features:

Output resolution up to 1080P & 1920x1200.
VGA is compatible with YPbPr & C-video.
Audio is selectable from HDMI embedded or external.
3-level MIC supports various MICs with mixing.
Auto switching function.
CEC control function.
Firmware updatable via USB.
Controllable via buttons, IR & RS232.

Specification

Video Input	3 HDMI (Female HDMI); 2 VGA (Female 15 pin HD); 0.5V~2.0Vp-p; 75Ω
Video Input signal	HDMI, VGA, YPbPr, C-video
Video Output	1 HDMI (Female HDMI); 1 RJ45 (Female RJ45), 0.5V~2.0Vp-p; 75Ω
Video Output signal	HDMI, HDBaseT
IR Input	1 IR IN (3.5 mm mini jack)
IR Output	5 IR OUT (3.5mm mini jack)
Audio Input	3 Dual-mono stereo audio for HDMI, >10kΩ 2 Dual-mono stereo audio for VGA (Supports C-video, YPbPr, VGA), >10kΩ, 1 MIC audio, >10kΩ All 3P captive screw connectors (3.81mm)
Audio Output	1 Stereo audio, 3P captive screw connector (3.81mm); 50KΩ
Resolution	1024x768, 1280x720, 1280x800, 1920x1080,1600x1200, 1920x1200
Bandwidth	HDMI: 6.75Gbps, C-video: 150MHz, YPbPr: 170MHz, VGA: 375MHz
Maximum Pixel Clock	148.5MHz
Stereo Channel Separation	>80dB@1KHz
Control	Button, IR & RS232 (Captive screw connector)
Power Supply	DC12V; Max 16W (power supply to TPHD402PR)
Temperature	0~50˚C
Humidity	10~90%
Chassis Dimension	W220xH44xD148mm
