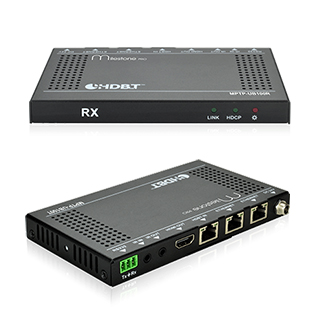

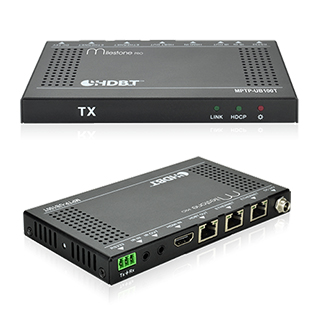

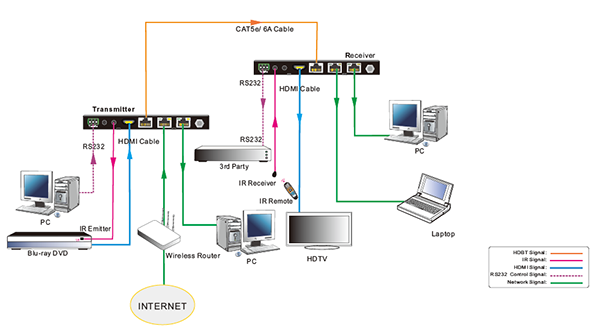

MPTP-UB100S is an ultra thin HDBaseT Extender set that consists of transmitter (MPTP-UB100T) and receiver (MPTP-UB100R). It distributes HDMI signal via CAT5e/ CAT6a cable at 328ft/ 100m/PoH, and enables IR and RS232 passthrough to control remote displays. It also supports 4 Ethernet interface for network. It provides a perfect long range transmission solution.

Features:

Ultra thin design
The highest resolution is 4Kx2k/60Hz
HDCP2.2 compliant
Maximum transmission distance is up to 70m for 4Kx2K, 100m for 1080P, 100m for Ethernet
Unidirectional PoE allows transmitter to power receiver
High bandwidth: 10.2Gbps
Support IR/RS232 passthrough
Use HDBaseT technology
LED indicators show work status

Specification

Input (MPTP-UB100T)	1 x HDMI (female), 1 x IR (3.5 mini jack), 1 xRS232 (3pin captive screw connector)
output (MPTP-UB100T)	1 x HDBT (RJ45), 1 x IR (3.5 mini jack), 1 x RS232 (3pin captive screw connector)
Input (MPTP-UB100R)	1 x HDBT (RJ45), 1 x IR (3.5 mini jack), 1 x RS232 (3pin captive screw connector)
Output (MPTP-UB100R)	1 x HDMI (female), 1 x IR (3.5 mini jack), 1 x RS232 (3pin captive screw connector)
Ethernet Port	2 x Ethernet Ports (2 Black RJ45) in Tx and 2 x Ethernet Ports in Rx
Ethernet Speed	Adaptive 10M/100M (max), full duplex or half duplex
Signal Standard	4Kx2k/60Hz & HDCP2.2
Audio	Digital Audio, Audio transmitted through HDMI
Transmission Distance	1080P≤100m, 4Kx2K≤70m
Temperature	0~50ºC
Reference Humidity	10% ~ 90%
Power Supply	Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,1.25A
Dimension	152mmx16.2mmx84mm
Power Consumption:	12W
Weight	0.186Kg (Tx) / 0.186Kg (Rx)
