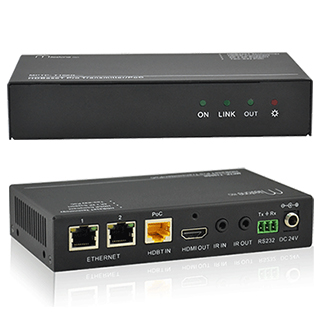

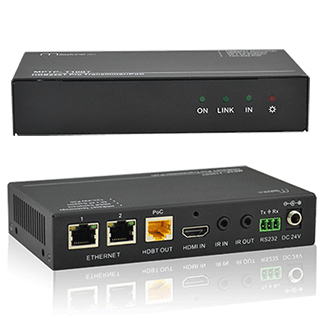

MPTP- T100S is a HDBaseT extender for HDMI, IR, RS232 &. Ethernet up to 328ft (100m) with PoC. It includes transmitter (MPTP- T100T) and receiver (MPTP- T100R), supports HDMI 1.4 and HDCP compliant.

Features:

Integrated with HDBaseT technology.
Support HDMI1.4, 3D & 4K x 2K.
328 feet (100m) transmission for HDMI, bi-directional IR, RS232 & Ethernet.
PoC function, from any side to the other side.
CEC pass through and HDCP compatible.
Nice cooling and ventilation design.
Locking power supply.

Specification

Input（TPHD403PT）	1HDMI（HDMIfemale）,1RS232（3Pcaptive screw connector）, 2Ethernet（RJ45）,1IR（3.5mmmini jack）
Ouput（TPHD403PT）	1HDBaseT（RJ45）,1IR（3.5mmmini jack）
Input（TPHD403PR）	1HDBaseT（RJ45）,1IR（3.5mmmini jack）
Ouput（TPHD403PR）	1HDMI（HDMIfemale）,1RS232（3Pcaptive screw connector）, 2Ethernet（RJ45）,1IR（3.5mmmini jack）
Transmission Mode	HDBaseT, Two-way PoC
Resolution	800x600~1920x1200,3D&4Kx2K
Gain	0dB～10dB@100MHz
Transmission Distance	100mwith PoC
Differential Phasic Erro	±10°@135MHz-100M
Bandwidth	10.2Gbps
Return Lost	<-30dB@5KHz
HDMI Standard	SupportHDMI1.4 & HDCP
Min ~ Max level	0.3V~1.45Vp-p;75Ω
Power Supply	24VDC;9.6W
Temperature	﹣20～ ﹢60℃
