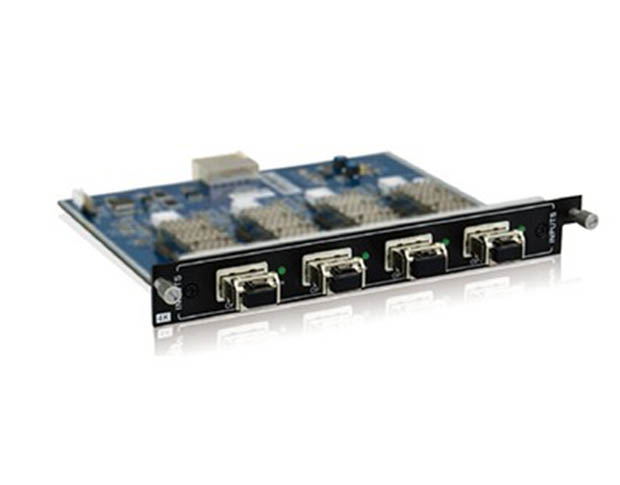

MPX 4IN FB

MPX4-IN-FB is an optical fiber input card supporting 4K for working with the MPX chassis. It has 4 fiber inputs, compatible with single-mode and multi-mode optical fiber


Features:
  • Bandwidth up to 10.2Gbps
  • Support HDMI 1.4, 4Kx2K & 1080p 3D
  • 984ft (300m) transmissions over multimode fiber
  • 1km transmission over single-mode fiber for 4K
  • Hot-swappable, user-friendly
Specification
Input 4 Fiber Optical (SPF Fiber Optical Connector)
Fiber Type Single-Mode &. Multi-Mode
Data Rate 10.2Gbps
Color depth 8bit, 10bit, 12bit,16bit
Connector   LC connector
Resolution Up to 4Kx2K
Transmission Distance 300m (OM3 Multi-Mode Fiber) / 1km Single-Mode Fiber for 4K
Working Temperature 0~50ºC
Reference Humidity 10%-90%
