MPTP ARC70S

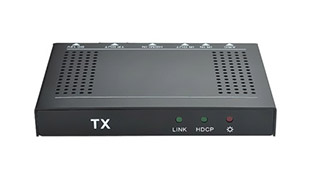

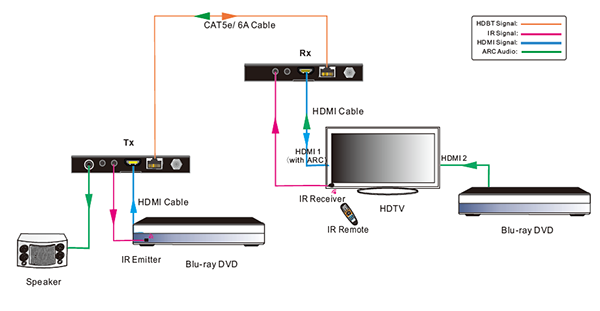

MPTP-ARC70S is a mini-size HDBaseT extender with ARC function for HDMI and bi-directional IR signals, which contains a transmitter MPTP-ARC70T and a receiver MPTP-ARC70R. It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable.The ARC function enables audio upstreaming from display to speakers. The extender set supports PoC function, which makes no need of power supply at the receiver end.

Features:
  • Support 4Kx2K, 1080P 3D video signal transmission
  • Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
  • High Bandwidth: 10.2Gbps
  • Compliant with HDMI & HDCP1.4
  • Use HDBaseT technology for extended capability and reliability
  • Support bi-directional PoE
  • Support ARC
  • Bi-directional IR passthrough
Specification
Input
(MPTP-ARC70T)

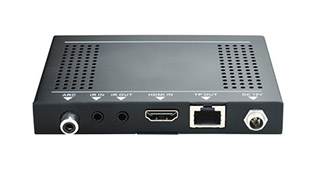

>1 x HDMI (female), 1 x IR IN (3.5mm jack)
output
(MPTP-ARC70T)
>1 x TP (RJ45), 1 x IR Out (3.5mm jack)
1 x ARC Out (Coaxial)
Input
(MPTP-ARC70T)
>1 x HDMI (female), 1 x IR Out (3.5mm jack)
Output
(MPTP-UB100R)
>1 x HDMI (female), 1 x IR Out (3.5mm jack)
Transmission Mode >  HDBaseT
Resolution >4Kx2K@30Hz (Max.)
Transmission Distance >Maximum distance 4K 131ft (40m) and 1080P 230ft (70m)
SNR >>70dB@ 100MHz-100M
Bandwidth >10.2Gbps
THD ><0.005%@1KHz
HDMI Standard >Support HDMI1.4 and HDCP1.4
Impedance >75Ω
Temperature >0~ 50ºC
Reference Humidity >10% ~ 90%
Power Supply >DC 12V, 1A
Dimension >W115XH16XD84(mm)
Weight >140g/Set
