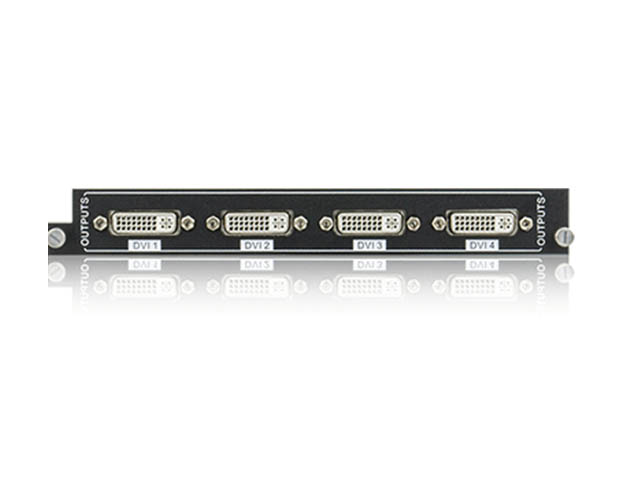

MPX4S OU DV

MPX4S-OU-DV is a SEAMLESS DVI output card working with MMX chassis. It is HDCP compliant and support EDID management.


Features:
  • Bandwidth up to 6.75Gbps
  • Seamless HD1080P
  • Smart EDID Management HDCP Compatible
  • Hot-swappable, user-friendly
Specification
Output 4DVI(Female DB24+5); T.M.D.S. 2.9V/3.3V; 75Ω
Frequency Response 20Hz ~20 K Hz
Output signal DVI, HDMI, VGA, C-VIDEO, YPbPr
Gain 0dB
Bandwidth 6.75Gbit/s
Switching Speed 200ns (Max.)
Max Time-delay 5nS(±1nS)
Crosstalk <-50dB@5MHz
EDID and DDC Supports Extended Display Identification Data (EDID) and
Display Data Channel (DDC) data using DVI and HDMI Standards.
EDID and DDC signals are actively buffered
HDCP Compliant with HDCP using DVI and HDMI 1.3 Standards
