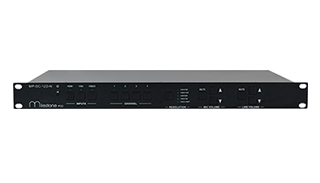

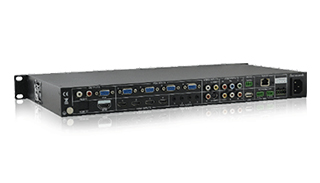

MP-SC-12D-N is a full HD scaler switcher with 12 video, 6 audio & 2 MIC inputs which can be scaled to 1080P in VGA/HDMI formats simultaneously, and the audio is amplified to 2x20W. It’s controllable via button, IR, RS232 & TCP/IP.

Features:

Upscale to HDMI & VGA outputs simultaneously at 1080P.
3-level MIC supports various MICs with mixer & level control.
Built-in 2x20W@4Ω digital amplifier (or 2x10W@8Ω)
Output display H/V size adjustable.
Output display position adjustable.
Firmware updatable via USB
Controllable via buttons, IR, RS232 & TCP/IP

Specification

Video Input	4 HDMI (Female HDMI); 4 VGA (Female 15 pin HD); 1 YPbPr, 2 C-video (Female RCA); 1 S-video (4 pin mini DIN connector); 0.5V~2.0Vp-p; 75Ω
Video Input Signal	HDMI, VGA, YPbPr & C-video
Video Output	1 HDMI (Female HDMI); 1 VGA (Female 15 pin HD); 0.5V~2.0Vp-p; 75Ω
Video Output Signal	HDMI, RGBHV
Audio Input	6 Stereo Audio (RCA female connector for YPbPr, C-video & S-video; 3.5mm jack for VGA ); 4 HDMI audio (embedded digital audio); 2 MIC (3P captive screw connector); >10kΩ
Audio Output	Stereo line audio (RCA connector); 50Ω 2x10W@8Ω/2x20W@4Ω amplifier (5P captive screw connector);
Resolution	1920x1080; HD 1360x768; 1280x720; WXGA 、1280x800; XGA 1024x768
Bandwidth	HDMI: 6.75Gbps;C-video/S-video: 150MHz; YPbPr: 170MHz; VGA: 375MHz
Maximum Pixel Clock	148.5MHz
Control	Buttons, IR, RS232 & TCP/IP control
Power Supply	100VAC ~ 240VAC, 50/60Hz; 65W
Temperature	0~ 50˚C
Humidity	10%~ 90%
Chassis Dimension	W483xH44xD235mm
