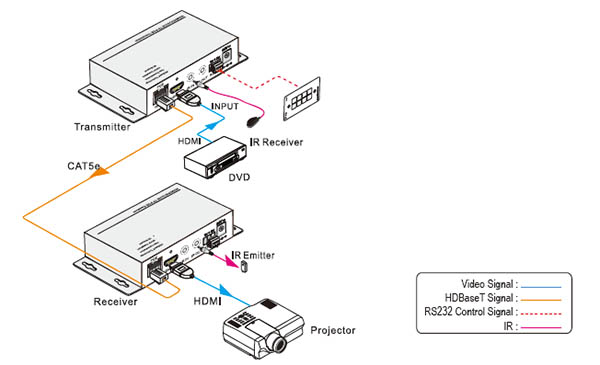

MPTP- T70S is a HDBaseT extender for HDMI, IR & RS232 up to 230ft (70m) with PoC. It includes transmitter (MPTP- T70T) and receiver (MPTP-T70R),supporting HDMI1.4 and HDCP compliant.
Features:
Integrated with HDBaseT technology.
Support HDMI1.4, 3D & 4K x 2K
230 feet (70m) transmission for HDMI, bi-directional IR & RS232
PoC function, from any side to the other side
CEC pass through and HDCP compatible.
Nice cooling and ventilation design.
Locking power supply.
Specification
Input
1HDMI(HDMI female),1 RS232(3p captive screw connector), 1 IR (3.5mm mini jack)
Output
1HDBaseT(RJ-45), 1 IR (3.5mm mini jack)
Input
1HDBaseT(RJ-45), 1 IR (3.5mm mini jack)
Output
1HDMI(HDMI female),1 RS232(3p captive screw connector), 1 IR (3.5mm mini jack)
