MPTP T70 WPT

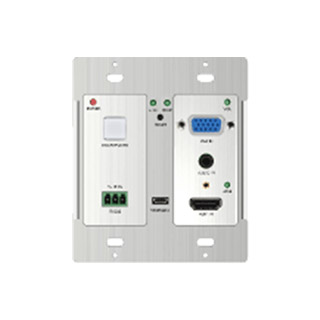

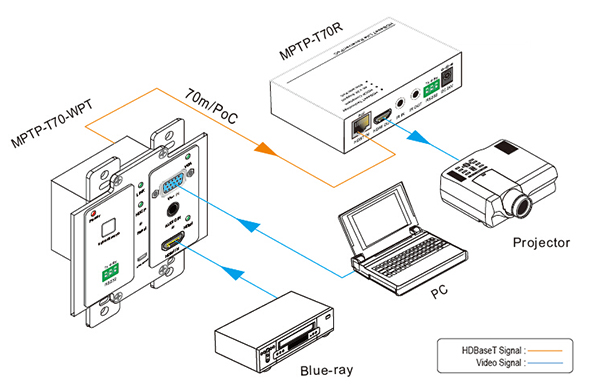

MPTP-T70-WPT is a 2 gang Decora style wall-mountable HDBaseT transmitter for HDMI or VGA/audio and RS232 at 230ft (70m) transmission with PoC function. It supports Auto-switching or button panel control between the inputs.

Features:

Integrated with HDBaseT technology.
230 ft (70m) transmission with PoC function.
HDMI or VGA with audio input selectable.
Built in scaling function, output resolution up to 4K.
Auto switching or button manual control between input sources.
LEDs for status checking & USB for firmware update.
Aluminum design for elegant & nice cooling.

Specification

Input	1 HDMI(HDMI female),1 VGA(VGA female),1 AUDIO(3.5mm mini jack), 1 RS232 (3P captive screw connector),
Output	1 HDBaseT(RJ45)
Transmission Mode	HDBaseT
Resolution	Up to 1080P for VGA; 800x600~1920x1200,3D&4Kx2K for HDMI
Gain	0dB ~10dB@100MHz
Bandwidth	10.2Gbps
Transmission Distance	230ft (70m) (max.)
Differential Phasic Erro	±10° @ 135MHz-100M
Bandwidth	10.2Gbps
Return Lost	<-30dB@5KHz
HDMI Standard	Support HDMI1.4 & HDCP
Min~ Max Level	0.3V ~ 1.45Vp-p; 75Ω
Power Supply	12V DC; 9.6W
Temperature	0~50ºC
Humidity	10% ~ 90%
Chassis Dimension	Decora style two gang
