MPX3232 NT

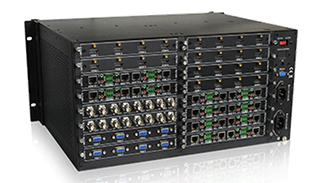

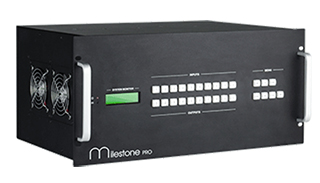

MPX3232-NT is a high−performance matrix switcher chassis for various digital and analog signals. The modular design is popular with 8 input slots & 8 output slots.

Features:
  • Support 4K
  • Configurable and flexible I/O with audio up to 32x32
  • Available with all kinds of I/O cards, HDBaseT, HDMI, optical, SDI, DVI and VGA/audio cards.
  • True cross point switching, any input to any output.
  • Ultra-switching for instantaneous display
  • Smart EDID management
  • HDCP compatible
  • Controllable via front panel button, IR, RS232 and optional TCP/IP
Specification
Video Input 8 slots, using MPX input cards
Video Input signal HDBT, HDMI, optical, SDI, DVI, VGA
Video Output 8 slots, using MPX output cards
Video Output signal HDBT, HDMI, optical, SDI, DVI, VGA
Controls   Buttons, IR remote, RS232 (9-pin female D connector), TCP/IP control
Power Supply 100VAC ~ 240VAC, 50/60Hz; 220W
Security Redundant power supply
Case Dimension W483xH219xD320mm
