Home > Scaler & Converter > MP HDDE3

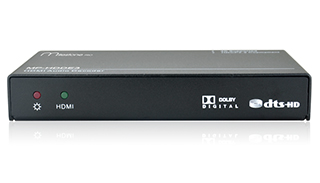

MP HDDE3

MP-HDDE3 is an HDMI audio de-Embedder; any input HD source can do audio extract by the OPTICAL, RCA (L/R) and COAX.

Features:

HDCP2.2 Compliant & Support 4K HDMI Video Source
Any input HD source can do audio extract by the OPTICAL, RCA (L/R) and COAX.
Re-clock HDMI and buffer DDC.
Comprehensive audio format signal compatibility: LPCM, Dolby Digital 5.1, DTS-HD 5.1
Transmit 4Kx2K signal for 15m via AWG24 HDMI cable

Specification

Input Signal	1 × HDMI(Type A Receptacle）
Output Signal	1 × HDMI(Type A Receptacle）1 × OPTICAL (Toslink Receptacle）1 × COAX(Black RCA Receptacle）1 × L/R(Red & White RCA Receptacle）
Maximum Video Compatibility	Deep Color 8/10/12/16 Bit at 1080p and 2160p/60
HDMI Resolution	Up to 4Kx2K@60Hz
HDMI Embedded Audio	PCM ,Dolby Digital, Dolby TrueHD, DTS,DTS-HD
Decoded Audio	PCM2.0
HDMI Cable	≤15m AWG24 HDMI standard cable
Power Supply	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Maximum Power Consumption	4.5W
Operating Temperature	-10 ~ +55℃
Storage Temperature	-20 ~ 70℃
Operating Humidity	10 ~ 90%
Storage Humidity	10 ~90%
Dimensions (W x H x D)	132mmX22mmX77mm
Weight	172g
Input Signal	1 × HDMI(Type A Receptacle）
Output Signal	1 × HDMI(Type A Receptacle）1 × OPTICAL(Toslink Receptacle）1 × COAX(Black RCA Receptacle）1 × L/R(Red & White RCA Receptacle）
Maximum Video Compatibility	Deep Color 8/10/12/16 Bit at 1080p and 2160p/60
