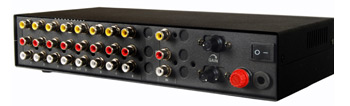

AV SPLITTERS BACK |

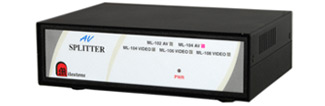

| Milestone AV Splitter is a high performance splitter by using this unit a single Audio Video inputs can be multiplied / splitter to any number of gain controlled Audio Video outputs. Its video bandwidth is more then 350 MHz ensures better control for Audio & Video on front panel. Each display or output you can be driven up to 100 Meters. |
 |
 |
| Features: |
 Audio & Video Amplified outputs. |
Power LED. |
| Multiple Simultaneous output from Single Source. |
Ability of Daisy chain up to 100 outputs. |
| All outputs are gain controlled. |
| Applications: |
| Wide area Audio & Video systems installations. |
| Public broadcasting & Announcements. |
| Audio-Visual presentations. |
| Technical Specifications: |
| Inputs: |
1 Video DC coupled, 1 VPP / 75 ohms on a RCA connector, 1 Audio 50 ohms on RCA. |
| Outputs: |
2/4/8 Video, 75 ohms BNC connectors, 2 Audio Stereo 50 ohms on RCA. |
| Video Bandwidth: |
350 MHz. - 3dB |
| Coupling: |
DC (Video); AC (audio) |
| Audio Bandwidth: |
20 KHz - 1dB |
| Power Source: |
230 VAC 50/60 Hz, 5 Amp |
| Dimensions: |
11cm x 10cm x 4.5cm for ML 102 (W,D,H) |
| Options: |
19" - 1U rack mountable Metal Casing |
|
| Models Available: |
| ML102 AV |
| ML104 AV |
| ML106 AV |
| ML108 AV |
| (ML stands for Milestone, 102 for 1 Audio Video inputs & 2 Audio Video outputs) |
|
| |
