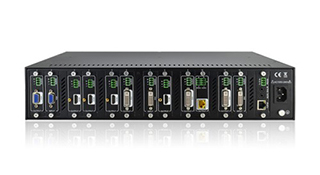

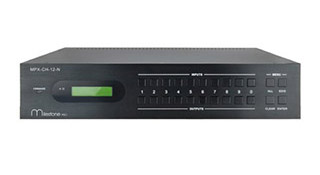

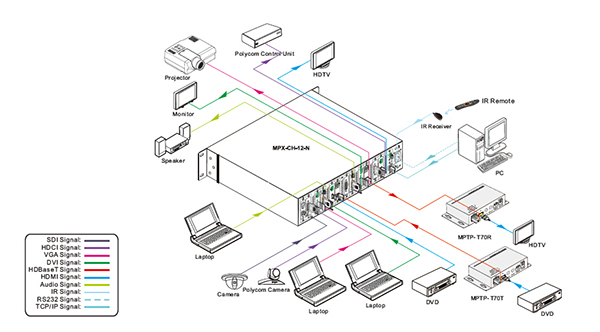

MPX-CH-12-N is a high-performance SEAMLESS AV modular matrix switcher with 12 flexible PCI-E slots for single HDMI / VGA / DVI /SDI / HDBaseT input and output cards. With its advanced modularization design, MPX-CH-12-N can make up a free matrix of 11x1, 6x6 or 1x11 among HDMI, VGA, DVI, SDI and HDBaseT. MPX-CH-12-N will auto-detect the inputs and outputs cards, support plug-and-play, and seamless switching of different video signals crossly. Moreover, HDBaseT cards are with PoH function.

Features:

12 card slots for flexible input/ output combination
Comprehensive signal card compatibility: HDMI / DVI / SDI/ VGA / HDBT
Automatically recognize input/ output signal card, output resolution adjustable
Powerful EDID management
HDCP Compliant
Seamless AV distribution through different AV signal
Controllable via front panel buttons, IR, RS232 & TCP/IP
HDBaseT cards with PoH function

Specification

Card Slot	12 PCI-E
Audio & Video Cards	HDMI / DVI / SDI / VGA / HDBaseT
Signal Standard	HDMI1.4 & HDCP1.3
Resolution	1080P (max)
Control	1 x IR EYE, 1 x TCP/IP, 1 x RS232, Front panel buttons
Temperature	0 ~ 50˚C
Reference Humidity	10% ~ 90%
Power Supply	100V~240V AC
Power Consumption	181.5W (full load)
Dimension (WHD)	483 x 88 x 380 mm
Weight	5.2Kg
