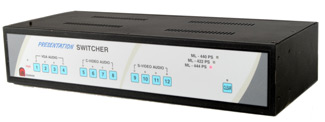

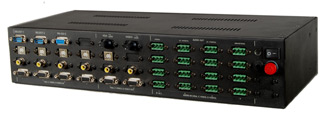

PRESENTATION MATRIX SWITCHERBACK
A unit whereby multiple VGA, Composite Video & S. Video inputs along with their respective Audio can be switched to individual two or four MATRIX* gain controlled VGA, Composite Video, S. video outputs along with their Audio.
Features:
Inputs: 2/4 VGA + Composite Video +
S- Video along with audio inputs.
RS-232C Port on rear panel.
Output: 2 outputs individual for each type
of inputs.
RS- 485 Port. (optional)
Switching through front panel keypad. RF Remote contact Closer. (optional)
Septet gain controlled outputs for VGA/
S- Video & Video.
Cable through remote keypad. (optional)
19"-1U/ 19"-2U type repack. (optional)

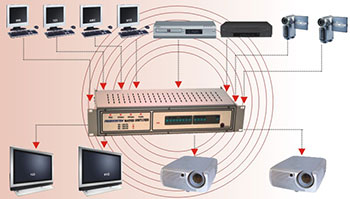

Applications:
Multimedia demo Public broadcasting
and stock market information.
Auditorium presentation and conference.
Long range transmission for easy access
to distant viewers.
Educational i.e. classroom instructions.
Models Available:
ML440 PMS
ML422 PMS
ML444 PMS
(ML stands for MILESTONE, 442 for4 VGA inputs along with its Audio, 2 Composite Video inputs along with its Audio & S. video input along with its Audio)
