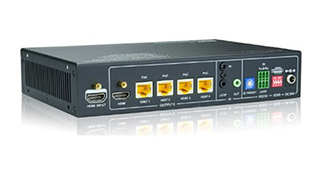

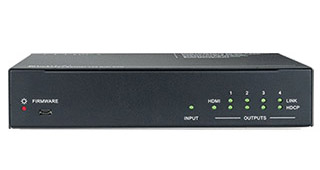

MP-HT-4T is a 4K HDBaseT splitter with 4 HDBaseT plus 1 HDMI outputs. It distributes HDMI signal via CAT cable at 230ft (70m) with PoC, and enables IR and RS232 pass through to control the remote displays.

Features:

4 HDMI Input support HDMI 1.4 &HDCP2.2, and compliant with lower standards
Support manual input HDCP auto-detecting and output manual HDCP management
2 HDMI Output support HDMI1.4& HDCP1.4, transmit 4Kx2K signal for 8m
4 HDBaseT outputs transmit 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable, support PoC
Controllable via front panel, TCP/IP, and bi-directional IR& RS232
Powerful EDID management

Specification

Input	4 x HDMI (female)
Output	2 x HDMI (female), 4 x HDBaseT (RJ45)
Gain	0 dB
Video Signal	HDMI (or DVI-D)
Signal Level	T.M.D.S. 2.9V~3.3V
Transmission Distance	1080P@60Hz ≤70m, 4Kx2K@30Hz ≤40m
Bandwidth	10.2Gbps
Resolution Range	Up to 4Kx2K, 1080P 3D
Switching Speed	200ns (Max.)
EDID Management	In-built EDID data and manual EDID management
HDCP	Input: HDCP 2.2 support Output: HDCP 1.4 support
Audio Output	Analog audio(3-pin pluggable terminal block)
PCM Format	Distortion: 0.1% 32Ω/70mW@1KHz, 0.1%, 16Ω/105mW@1KHz
Frequency Response	20Hz~20KHz
Control	1 x IR EYE, 1 x IR ALL IN, 1 x TCP/IP, 1 x RS232,Front panel buttons
Temperature	0~ 50ºC
Reference Humidity	10% ~ 90%
Power Supply	DC24V / 2.5A
Power Consumption	48W (full load)
Dimension (WHD)	436 x 235 x 44 mm
Weight	2.0Kg
