MPTP B70S

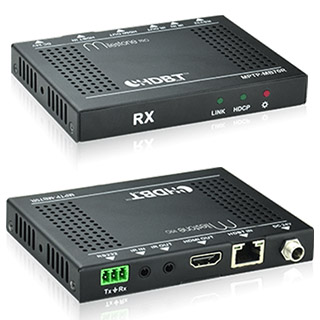

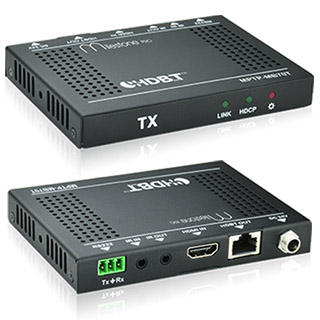

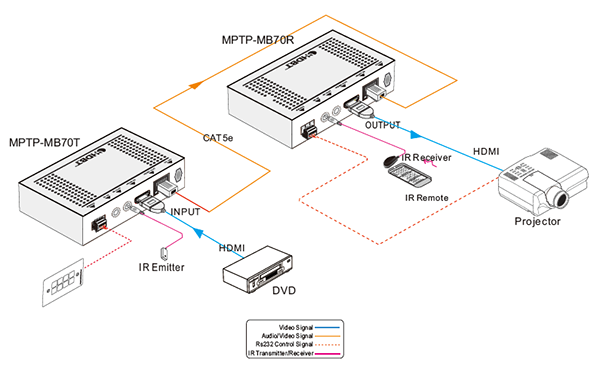

MPTP-MB70S is a mini-size HDBaseT Extender set that consists of transmitter (MPTPMB70T) and receiver (MPTP-MB70R), supporting1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. TPUH411 supports CEC, bi-directional RS232&IR control, and unidirectional PoH function.

Features:
  • Support Full HD 1080p@60Hz@48 b/pixels/3D/4Kx2K
  • Transmit 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable
  • High Bandwidth: 10.2Gbps
  • HDMI 1.4 and HDCP2.2 compliant
  • Support CEC/IR/RS232 pass vthrough.
  • Support PoH, the receiver can be powered by transmitter.
  • Bi-directional RS232/IR control.
  • LED indicators show work status
Specification
Input(MPTP-MB70T) 1 x HDMI (female), 1 x IR (3.5 mini jack), 1 x
RS232 (3pin captive screw connector)
Ouput(MPTP-MB70T) 1 x HDBT (RJ45), 1 x IR (3.5 mini jack), 1 x RS232
(3pin captive screw connector)
Input(MPTP-MB70R) 1 x HDBT (RJ45), 1 x IR (3.5 mini jack), 1 x RS232
(3pin captive screw connector)
Ouput(MPTP-MB70R) 1 x HDMI (female), 1 x IR (3.5 mini jack), 1 x
RS232 (3pin captive screw connector)
Signal Standard   HDMI 1.4 & HDCP 2.2
Audio Digital Audio, Audio transmitted through HDMI
Transmission Distance 1080P≤70m, 4Kx2K≤40m
Temperature 0~ 50ºC
Reference Humidity 10% ~ 90%
Power Supply Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,1.25A /
Dimension
(W*H*D)
W115xH16.2x D84mm
Power  Consumption: 11W
Weight 0.15Kg (Tx) / 0.15Kg (Rx)
