MP HD 88A NDownload

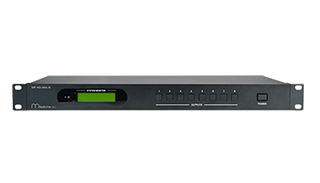

MP-HD-88A-N is a 4K 8*8 HDMI Matrix Swticher with 8 de-embeded HDMI audio output portsl HDMI inputs support HDMI 2.0, HDCP 2.2, resolution up to 4K.l Outputs support HDMI 1.4 and HDCP, SPDIF

Features:
  • 8x8 HDMI matrix with 8 de-embedded HDMI audio output ports
  • HDMI Input: HDMI 2.0 and HDCP2.2 compatible, support signal up to 4Kx2K@60Hz & 1080P 3D/li>
  • HDMI Output: HDMI 1.4 and HDCP1.4 Compliant, support 2560x1080@60Hz signal/li>
  • SPDIF ports for de-embedded HDMI audio output/li>
  • Powerful EDID management/li>
  • Controllable via front panel button, IR, RS232 & TCP/IP/li>
Specification
Video Inputs 8 x HDMI
Video Output 8 x HDMI, 8 x SPDIF Audio
Control Ports 1 x IR IN (3.5mm Jack), 1 x TCP/IP (RJ45), 1 x RS232 (3-pin pluggable terminal block)
EDID
Management
In-built EDID data and manual EDID management
Audio Signal   Dolby Digital, DTS, DTS-HD
Max Resolution 4K x 2K, 1080P 3D
Transmission
Distance
4Kx2K@60Hz ≤15m
Bandwidth 10.2Gbps
Switching Speed 200nS
Power Supply DC 24V 2.5A
Power
Consumption
32W (Full Load)
Dimension (W*H*D) W437xH44xD200(mm)
Temperature 0 ~ 50ºC
Reference IR Remote 10% ~ 90%
Weight 1.96Kg
