MPX4 IN DV

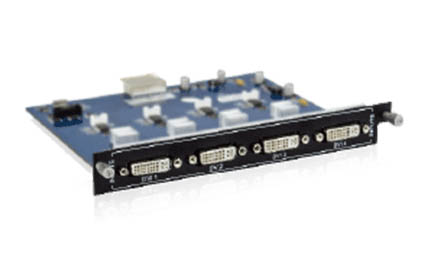

MPX4-IN-DV is a DVI input card working with MMX chassis. It is HDCP compliant and support EDID management.

Features:
  • Bandwidth up to 6.75Gbps
  • High resolution display, up to 1080P, 1920x1200@60Hz, HDTV compatible
  • Smart EDID management
  • HDCP compatible
  • Hot-swappable, user-friendly
Specification
Input4DVI(Female DB24+5); T.M.D.S. 2.9V/3.3V;75Ω
Input signalDVI-D full digital, HDMI
Gain0dB
Bandwidth6.75Gbit/s
Resolution range  Up to 1920 x 1200 or 1080P@60Hz, supports 3D
Switching Speed200ns (Max.)
Max Time-delay5nS(±1nS)
Crosstalk<-50dB@5MHz
DVI/HDMI standardsDVI1.0/HDMI 1.4a, supports EDID and DDC,
Compliant with HDCP
