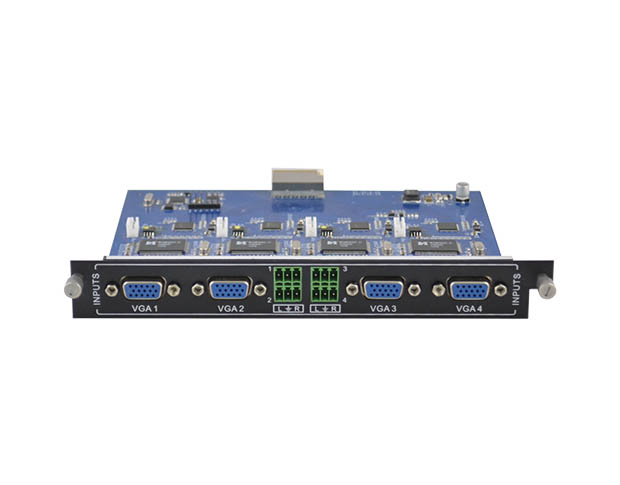

MPX4 IN VG

MPX4-IN-VG is a VGA/audio input card working with MMX chassis. It has 4 VGA inputs and 4 audio, each VGA is compatible with YPbPr, C-video & S-video.

Features:
  • Bandwidth up to 350MHz
  • Completely compatible with YPbPr, S-video and C-video.
  • Auto-scaling function, scaled up to 1080P output.
  • Hot-swappable, user-friendly
Specification
Input 4VGA,(Female 15 pin HD);  0.5 ~ 2.0Vp-p; 75Ω
4 stereo audio, 3P captive screw connectors (3.81mm); >10kΩ
Input signal VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, component video,
S-video & C-video, stereo audio
Input Coupling AC coupling only
Switching Type Vertical interval
Gain    0dB
Resolution 1920*1080p; XGA, 1024*768; 1280*720p; WXGA, 1280*800
Bandwidth 350MHz(-3dB), fully load
Frequency Response 20Hz~20KHz
CMRR >90dB@20Hz to 20K Hz
Switching Speed 200ns (Max.)
Crosstalk <-50dB@5MHz
