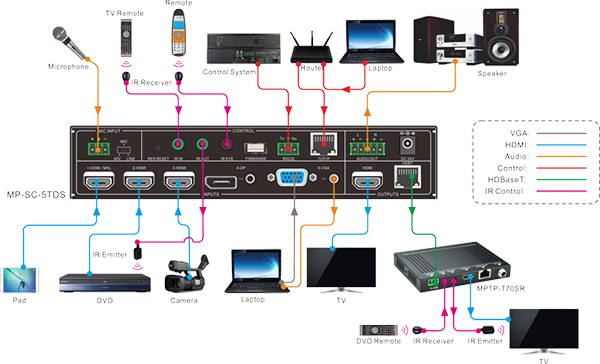

MP-SC-5TDS is a seamless mini Scaler switcher with 5 video inputs (1 HDMI/MHL, 2 HDMI, 1 DP, and 1 VGA) and 3 audio inputs (1 DP external audio, 1 VGA auxiliary audio, 1 MIC audio). MP-SC-5TDS scales & switches any video signal to HDMI output and HDBaseT output (supports PoH and connects to an HDBaseT Receiver, up to a maximum transmission distance of 70 meters.

Features:

Compliant with HDMI1.4& HDCP2.2
Supports video source auto-switching function.
Output resolutions selectable to assure preferred output, and supports various output resolutions.
MIC port supports balance/unbalance signal, suppress the external noise effectively.
3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone.
Controllable via buttons, IR remote, RS232 & Web-based GUI Powerful OSD function.

Specification

Video input	1 HDMI/MHL; 2 HDMI; 1 DP;1 VGA
Video Input Connector	3 female HDMI;1 Display Port;1 female VGA (15-pin)
Input Video Signal	HDMI, DP, YPbPr, C-video, VGA
Video Output	1 HDMI; 1 HDBaseT
Video Output Connector	1 female HDMI; 1 RJ45
Output Video Signal	HDMI, HDBaseT
Output Resolution	1920x1200, 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, 1024x768.
Standards	Compliant with HDMI 1.4 & HDCP2.2
Audio
Audio Input	1 stereo audio input for DP,1 stereo audio input for VGA, 1 Microphone audio
Audio Input Connector	2 x 3.5mm Stereo jacks,1x 3-Pin phoenix connector
Audio Input Impedance	>10kΩ
Audio Output	1 Dual-Mono analog audio
Audio Output Connector	1 5-Pin phoenix connector
Audio Output Impedance	70Ω
Frequency Response	20Hz~20K Hz
Stereo Channel Separation	>80dB @1KHz
Control Part
Control port	1 IR IN, 1 IR OUT, 1 IR EYE,1 RS232,1 TCP/IP
Control Connector	3 3.5mm mini jack; 1 3-Pin phoenix connectors;1 RJ45
General
Transmission Distance	1080P≤70m(Cat6)
Temperature	0 ~ +50℃
Humidity	10% ~ 90%
Power Supply	DC24V 2.71A
Power Consumption	27W
Dimension (WHD)	220mm x 44mm x 172.5mm
Weight	800g
