MP SC 5DDownload

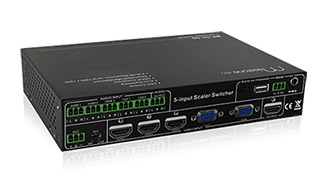

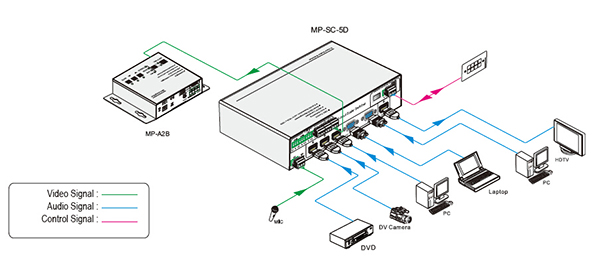

MP-SC-5D is a full HD scaler switcher with 5 video & 5 audio & 1 MIC inputs, it scales & switches any video signal to HDMI output up to 1080P, controllable via button, IR and RS232.

Features:
  • Output resolution up to 1080P & 1920x1200.
  • VGA is compatible with YPbPr & C-video.
  • Audio is selectable from HDMI embedded or external.
  • 3-level MIC supports various MICs with mixing.
  • Auto switching function.
  • CEC control function.
  • Firmware updatable via USB.
  • Controllable via buttons, IR & RS232.
Specification
Video Input 3HDMI(Female HDMI); 2 VGA (Female 15 pin HD); 0.5V~2.0Vp-p; 75Ω
Video Input Signal HDMI,VGA, YPbPr, C-video
Video Output 1HDMI (Female HDMI); 0.5V~2.0Vp-p; 75Ω
Video Output Signal HDMI,DVI
Audio Input 3Dual-mono stereo audio for HDMI, >10kΩ
2 Dual-mono stereo audio for VGA
(Supports C-VIDEO, YPbPr, VGA), >10kΩ
All 3P captive screw connectors(3.81mm);
Audio Output 1Stereo audio,  3P captive screw connector(3.81mm); 50KΩ
Resolution 1024x768,1280x720, 1280x800, 1920x1080, 1600x1200,1920x1200
Gain 0dB
Bandwidth HDMI:4.95Gbps(1.65Gbpsper color)
C-Video:150MHz, YPbPr: 170MHz, VGA:375MHz
Maximum Pixel Clock 165MHz
DVI/HDMI Standard Compliant with HDCP, DVI & HDMI 1.3
Control Buttons, IR remote & RS232 (Captive screw connector)
Power Supply DC12V  ± 0.5V; 8W
Temperature  -20 ~ +70℃
Humidity 10%~ 90%
Chassis Dimension W220x H44 x D148mm
