MPX4 OU VG

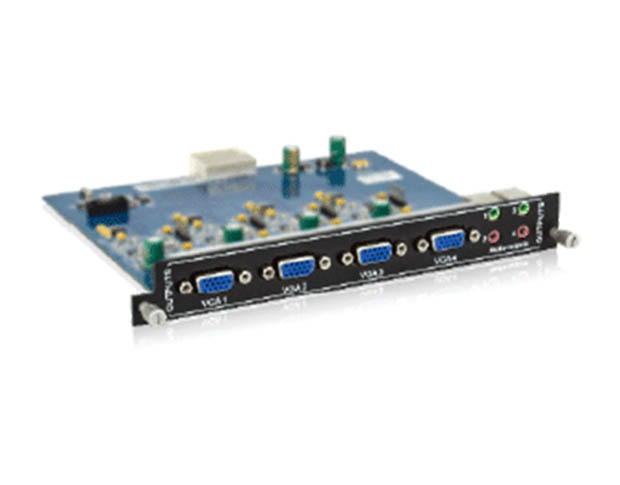

MPX4-OU-VG is a VGA/audio output card working with MMX chassis. It has 4 VGA output and 4 audio, each VGA is compatible with YPbPr, C-video & S-video.

Features:
  • VGA and stereo audio outputs
  • Bandwidth up to 350MHz
  • Compatible with YPbPr, S-video and C-video
  • Hot-swappable, user-friendly
Specification
Output 4VGA,(Female 15 pin HD);  0.5 ~ 2.0Vp-p; 75Ω
Output signal RGBHV
Input Coupling AC coupling only
Switching Type Vertical interval
Gain   0dB
Resolution 1920*1080p;XGA, 1024*768; 1280*720p; WXGA, 1280*800
Bandwidth 350MHz(-3dB), fully load
Switching Speed 200ns (Max.)
Crosstalk <-50dB@5MHz
