MPX6464 NT

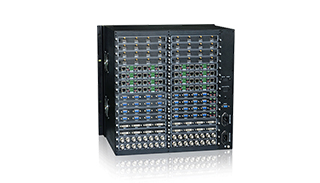

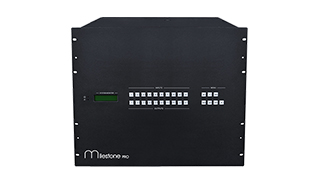

MPX6464-NT is a high−performance matrix switcher chassis for various digital and analog signals. The modular design is popular with 8 input slots & 8 output slots.

Features:
  • Support 4K.
  • Configurable and flexible I/O with audio up to 64x64.
  • Available with all kinds of I/O cards, HDBaseT, HDMI, Optical, SDI, DVI and VGA/audio cards.
  • True crosspoint switching, any input to any output.
  • Ultra-switching for instantaneous display.
  • Smart EDID management.
  • HDCP compatible.
  • Controllable via front panel button, IR, RS232 and optional TCP/IP.
Specification
Video Input 16 slots, using MPX input cards
Video Input signal HDBT, HDMI, optical, SDI, DVI, VGA
Video Output 16 slots, using MPX output cards
Video Output signal HDBT, HDMI, optical, SDI, DVI, VGA
Controls Buttons, IR remote, RS232 (9-pin female D connector),            TCP/IP control
Power Supply 100VAC ~ 240VAC, 50/60Hz; 550W
Security Redundant power supply
Case Dimension W483xH438xD320mm
