MP SC HD2Download

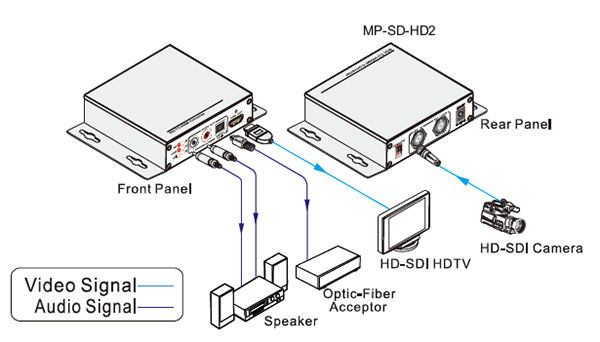

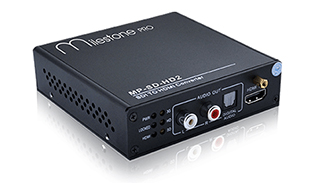

MP-SD-HD2 is a SDI to HDMI converter, it converts any 3G-SDI, HD-SDI or SD-SDI signal to HDMI, and has 2 de-embedded audio.

Features:
  • Compatible with 3G-SDI, HD-SDI and SD-SDI.
  • Support HDMI 1.3, compatible with DVI
  • 2 de-embedded audio outputs.
  • SDI Loop output with reclock.
  • Resolution up to 1080p, HDTV compatible.
  • Locking power adaptor.
Specification
Video Input< 1SDI(BNC)<
Video Output< 1HDMI (HDMI female); 1 SDI(BNC); 0.5V~2.0Vp-p; 75Ω<
Video Signal Type< HDMI/DVI,SD/HD/3G SDI<
Audio Input< 1SDI(BNC); >10KΩ<
Audio Output<    2Stereo audio(RCA); 50Ω
1 digital audio(SPF fiber connector);<
Resolution< 1920x1080P;1920x1080I; 1280x720; 480I (NTSC); 576I (PAL)<
Gain< 0dB<
Maximum Data Speed< 2.97Gbps<
Maximum Pixel Clock< 148.5MHz<
Stereo Channel Separation< >80dB@1KHz<
Frequency Response< 20Hz~20KHz<
CMRR< >90dB@20Hz to 20K Hz<
HDCP< Compliant with HDCP<
Power Supply< 5VDC;  65W<
Temperature<  -20 ~ +70℃ <
Humidity< 10%~ 90%<
Chassis Dimension< W100x H100 x D26mm<
