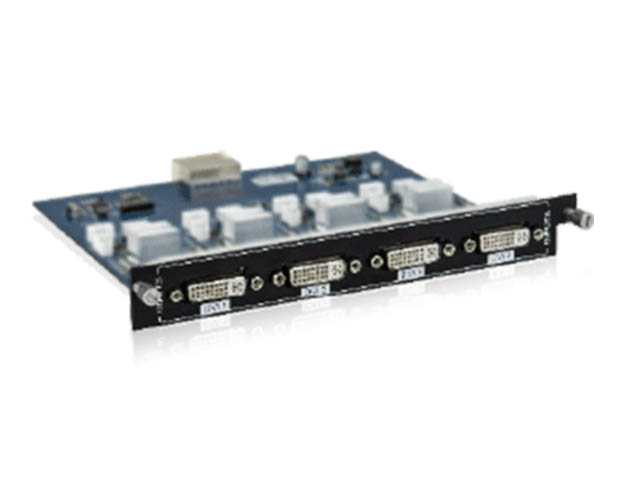

MPX4S-IN-DV is a SEAMLESS DVI input card working with MMX chassis. It is HDCP compliant and support EDID management.
Features:
Bandwidth up to 6.75Gbps
Seamless HD1080P
Smart EDID Management
HDCP Compatible
Hot-swappable, user-friendly
Specification
Input
4 x DVI (female DB24+5/HDMI), T.M.D.S. 2.9V~3.3V / 75Ω
Frequency Response
20Hz ~ 20K Hz
Video Signal
DVI,HDMI,VGA,C-VIDEO, YPbPr
Gain
0 dB
Bandwidth
4Kx2K
Switching Speed
200ns (Max.)
Max Time-delay
5nS (±1nS)
Crosstalk
<-50dB@5MHz
EDID and DDC
Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered
