MP SHD4A NDownload

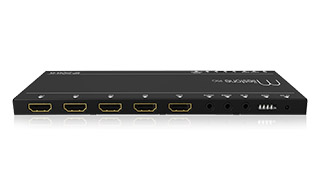

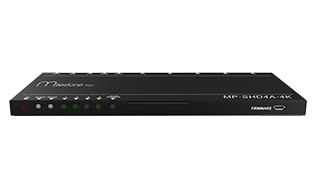

MP-SHD4A-4K is a 4x1 HDMI switcher with unique ultra-slim design. It supports 4K resolution and HDCP 1.4. Audio de-embedded output and support ARC.
Features:
  • Ultra-slim design
  • Bandwidth up to 10.2Gbps
  • Support HDMI 1.4, 4Kx2K &. 1080p 3D.
  • Audio de-embedded output.
  • Support ARC.
  • Smart EDID management with built-in EDID data
  • Support hot-plug
  • HDCP 1.4 compliant
Specification

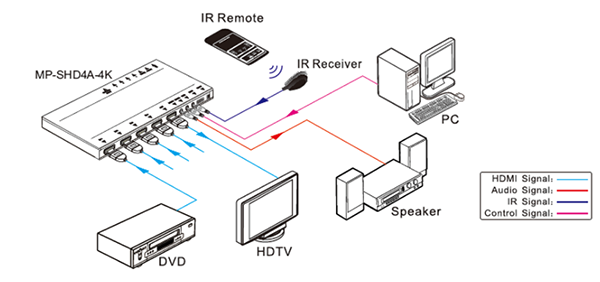

Input 4 HDMI ( Female type A HDMI 1.4), 1 IR (3.5mm jack)
Output 1 HDMI ( Female type A HDMI 1.4) , 1 Audio(3.5mm mini jack)
HDMI Standard HDMI 1.4, support HDMI Deep Color, full 3D & 4Kx2K@30Hz
      Video Signal Support VESA and SMPTE Video480p/1024x768/720p//1280x800/108 0p/3840x2160@30Hz
HDCP HDCP 1.4 compatible
EDID In-built EDID management
ARC HDMI support ARC function
control RS232, IR Control
Bandwidth 10.2Gbps
Power Supply DC 5V 1A ,5W
Temperature 0~50ºC
Reference Humidity 10%-90%
Chassis Dimension W194xH11.4xD80mm
Weight About 160g
