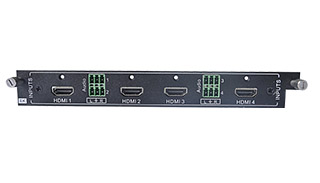

MPX4 IN HD

MPX4-IN-HD is a HDMI input card supporting 4K for working with MMX chassis. It is HDCP compliant and supports EDID management.
Features:
  • Bandwidth up to 10.2Gbps.
  • Support HDMI 1.4, 4Kx2K &. 1080p 3D.
  • 4 Separate audio input to follow with the 4 HDMI inputs.
  • Smart EDID management.
  • HDCP compatible.
  • Fully compatible with DVI.
  • Hot-swappable, user-friendly.
Specification
Input 4HDMI (Female HDMI) T.M.D.S 2.9V～ 3.3V,4Stereo audio (3.5mm stereo audio connector), 4 RS232( Captive screw connector)
Frequency Response 20Hz ～  20KHz
Gain 0dB
Bandwidth 10.2Gbps
Max Resolution   4Kx2K
Crosstalk <-50dB@5MHz
Transmission Distance 1080P≤70m,4KX2K≤40m
Switching Speed 200ns (Max.)
Return Loss <-30dB@5KHz
SNR >70dB@100MHz-100M
Supported Audio Format Embedded HDMI audio: PCM, Dolby Digital, DTS, DTS-HD
HDM Standard SupportHDMI1.4& DVI1.0
EDID&HDCP Management Compliant with HDCP 1.4; Support manual EDID management
Reference Humility 10% ～  90%
Work Temperature -10˚c ～  +40˚C
