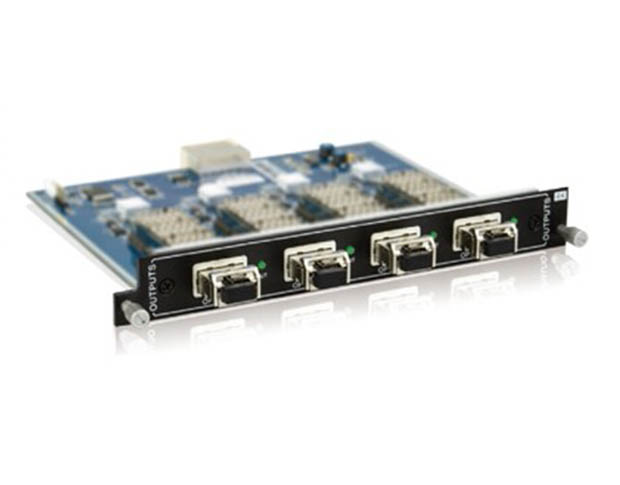

MUX4-OU-FB is an optical fiber output card supporting 4K for working with the MPX chassis. It has 4 fiber output, compatible with single-mode and multi-mode optical fiber.
Features:
Bandwidth up to 10.2Gbps.
Support HDMI 1.4, 4Kx2K & 1080p 3D
984ft (300m) transmission over multi-mode fiber.
1km transmission over single-mode fiber for 4K.
Hot-swappable, user-friendly.
Specification
Output
4 Fiber Optical (SPF Fiber Optical Connector)
Fiber Type
Single-Mode &. Multi-Mode
Data Rate
10.2Gbps
Color depth
8bit, 10bit, 12bit,16bit
Connector
LC connector
Resolution
Up to 4Kx2K
Transmission Distance
300m (OM3 Multi-Mode Fiber) / 1km Single-Mode Fiber for 4K
