Home > HDMI Distribution > MP DA2HD 4K

MP DA2HD 4KDownload

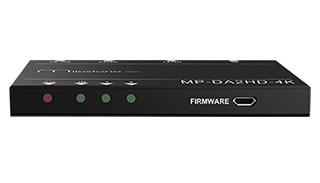

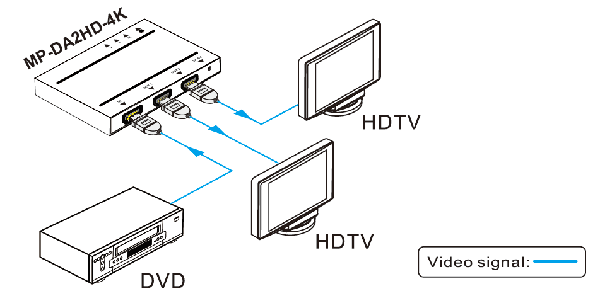

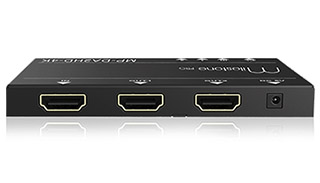

MP-DA2HD-4K is a 1x2 HDMI splitter with unique ultra-slim design. It supports 4K resolution and HDCP 1.4.

Features:

Bandwidth up to 10.2Gbps
Support HDMI1.4, 4Kx2K & 1080P 3D
984ft (300m) transmission over multi-mode fiber, 0.62mi (1km) over single-mode fiber
Manual EDID management

Specification

Input	1HDMI
Input Connector	1femaletype A HDMI 1.4
Min/Max Signal Level	T.M.D.S. 2.9V~3.3V
Input Impedance	Differential100Ω
Output	2HDMI
Output Connector	1femaletype A HDMI 1.4
Min/Max Signal Level	T.M.D.S. 2.9V~3.3V
Output Impedance	Differential100Ω
Max data rate	10.2Gbit/s
Max Resolution	4Kx2K,1080P 3D@60Hz
Max Pixel Clock	340MHz
Gain	0dB
HDCP	CompliantwithHDCP1.4
EDID	In-built DID management
Temperature	-10~ +40℃
Reference Humidity	10%~ 90%
Power Consumption	2.5W
Power	DC5V 1A
Dimension(WHD)	100x11x70mm
Weight	0.08kg
