MP DA4HD 4KDownload

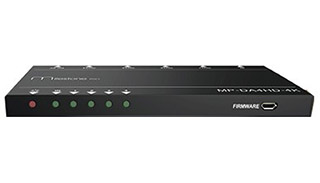

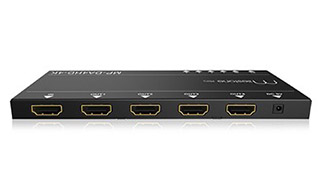

MP-DA4HD--4K is a 1x4 HDMI splitter with unique ultra-slim design. It supports 4K resolution and HDCP 1.4.

Features:

Ultra-slim design
Bandwidth up to 10.2Gbps
Support HDMI 1.4, 4Kx2K &. 1080p 3D
Support hot-plug
HDCP 1.4 compliant

Specification

Input	1HDMI
Input connector	1female type A HDMI 1.4
Min/Max Signal Level	T.M.D.S. 2.9V~3.3V
Input Impedance	Differential100Ω
Output	4HDMI
Output Connector	1female type A HDMI 1.4
Min/Max Signal Level	T.M.D.S. 2.9V~3.3V
Output Impedance	Differential 100Ω
Max data rate	10.2Gbit/s
Max Resolution	4Kx2K,1080P 3D@60Hz
Max Pixel Clock	340MHz
Gain	0Db
HDCP	Compliant with HDCP1.4
EDID	In-built EDID management
Temperature	-10~ +40℃
Reference Humidity	10% ~ 90%
Power Consumption	3.6W(Max)
Power	DC5V 1A
Dimension	(WHD)150x11x70mm
Weight	0.12kg
