MPTP B70S

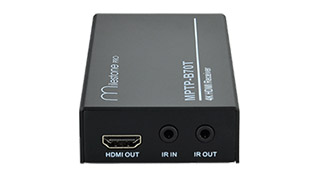

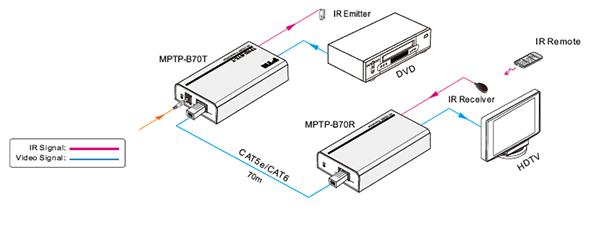

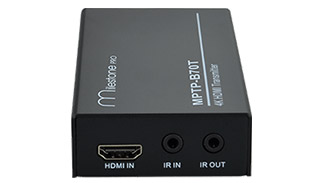

MPTP-B70S is a HDBaseT extender for HDMI and bi-directional IR signals, which contains a transmitter TPHD-BYE-T and a receiver TPHD-BYE-R. It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The extender set supports PoC function, which can save a power supply at the receiver end.

Features:

Support 4Kx2K, 1080P 3D video signal transmission
Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
High Bandwidth: 10.2Gbps
HDTV Compatible, HDMI1.4 and HDCP compliant
Support PoC & CEC
Use HDBaseT technology for extended capability and reliability
Bi-directional IR control
LED indicators showing work status

Specification

Input (MPTP-B70T)	1 x HDMI (female), 1 x IR IN (3.5mm jack)
output (MPTP-B70T)	1 x TP (RJ45), 1 x IR Out (3.5mm jack)
Input (MPTP-B70R)	1 x TP (RJ45), 1 x IR IN (3.5mm jack)
Output (MPTP-B70R)	1 x HDMI (female), 1 x IR Out (3.5mm jack)
Transmission Mode	HDBaseT
Resolution Range	800x600@60Hz~4Kx2K
Transmission Distance	Maximum distance 4K 131ft (40m) and 1080P 230ft (70m)
SNR	>70dB@ 100MHz-100M
Bandwidth	10.2Gbps
THD	<0.005%@1KHz
HDMI Standard	Support HDMI1.4 and HDCP1.4
Impedance	75Ω
Temperature	0~ 50ºC
Reference Humidity	10% ~ 90%
Power Supply	DC 12V, 1A
Weight	0.56Kg/Set
