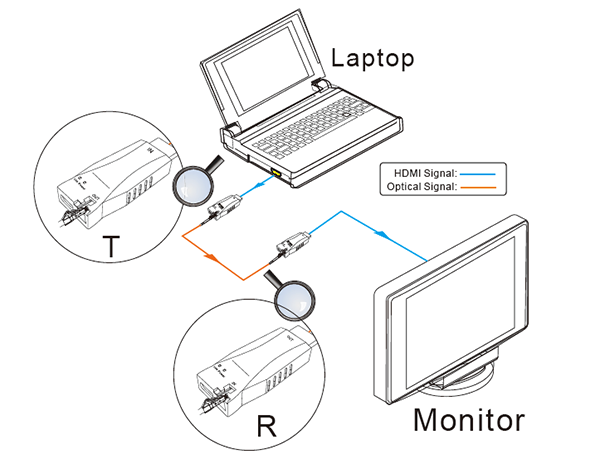

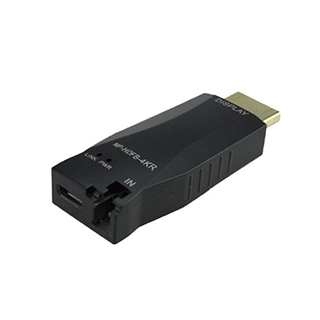

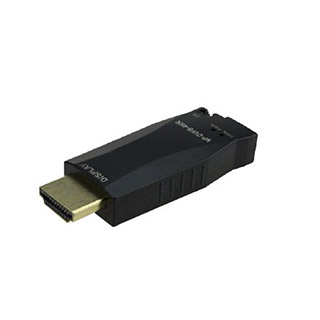

MP-HDFB-4K is a mini 4K DVI optical fiber extender, which contains a transmitter module and a receiver module. Compatible with HDMI1.4, it transmits high-definition DVI/ HDMI (max3840x2160@30Hz) signal up to 300m / 1km over qualified OM3 multi-mode / single mode fiber-opticcable. It also offers manual EDID management to ensure reliable AV distribution.

Features:

Intergrated with HDBaseT technology
4K up to 300m/400m over OM3 multimode / single mode fiber-optic cable
Bandwidth is 10.2Gbps.
Support HDMI 1.4, 4Kx2K &. 1080p 3D.
HDCP 1.4 compliant.
Aluminum design for elegant & nice cooling.

Specification

Input (MP-HDFB-4KT)	1 HDMI (HDMI male)
Output (MP-HDFB-4KT)	1 x Optical (LC)
Input (MP-HDFB-4KR)	1 x Optical (LC)
Output (MP-HDFB-4KR)	1 HDMI (HDMI male)
Resolution	4Kx2K@30Hz
Data Rate	3.4Gbps (Max.)
Max. Pixel Clock	340Mbps
Max. Video Bit Rate	10.2Gbps
Skew Inter channels	6ns (Max.)
Link Power Budget	8.5dB (Min.)
Temperature	0 ~ 50ºC
Fiber	OM3 MM Fiber or Single-mode Fiber
Working Humidity	5% ~ 80%
Storage Humidity	5% ~ 95%
Dimension (WHD)	W20xH10.5xD59.3(mm)
