Home > Modular Matrix > MPX4S IN HD

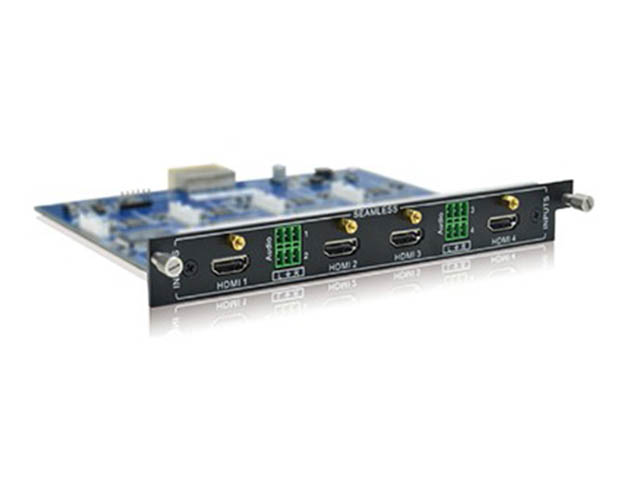

MPX4S IN HD

MPX4S-IN-HD is a SEAMLESS HDMI input card working with MPX chassis. It is HDCP compliant and support EDID management.

Features:
  • Bandwidth up to 10.2Gbps
  • Seamless HD1080P
  • 4 Separate audio input to follow with the 4 HDMI input
  • Smart EDID Management
  • HDCP Compatible
  • Hot-swappable, user-friendly
Specification
Input 4 x HDMI (Female) , 4 x Analog Audio (captive screw connector)
Video Signal HDMI, DVI
Audio Signal PCM
Bandwidth 10.2Gbps
Standards   HDMI1.3 & HDCP1.2
Power   Consumption 8W
Color Depth 8, 10, 12 bit
Working Temperature 0~50ºC
Reference Humidity 10%-90%
EDID and DDC Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data
