MPM 88 IR NDownload

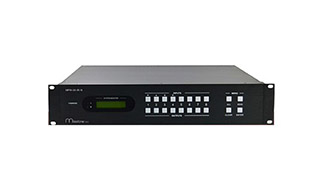

MPM-88-IR-N is a 4K 8*8 HDBaseT Matrix Swticher with 8*HDMI input and 8*HDBaseT & 4*HDMI with de-embedded audio.

Features:
  • 8 HDMI Input support HDMI 1.4 &HDCP2.2, and compliant with lower standards
  • Support manual input HDCP auto-detecting and output manual HDCP management
  • 4 HDMI Output support HDMI1.4& HDCP1.4, transmit 4Kx2K signal for 8m
  • 8 HDBaseT outputs transmit 4K signal up to 131ft (40m), 1080P signal
  • up to 230ft (70m) over single CAT5e/6 cable, support PoC
  • Controllable via front panel, TCP/IP, and bi-directional IR& RS232
  • Powerful EDID management
Specification
Input 8 x HDMI (female)

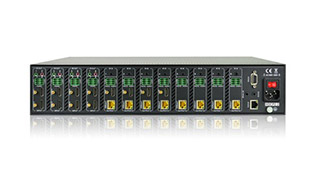

Output 4 x HDMI (female), 8 x HDBaseT (RJ45)
Gain 0 dB
Video Signal HDMI (or DVI-D)
Signal Level   T.M.D.S. 2.9V~3.3V
Transmission Distance 1080P@60Hz ≤70m, 4Kx2K@30Hz ≤40m
Bandwidth 10.2Gbps
Resolution Range Up to 4Kx2K, 1080P 3D
Switching Speed 200ns (Max.)
EDID Management In-built EDID data and manual EDID management
Audio Output Analog audio(3-pin pluggable terminal block)
PCM Format Distortion: 0.1% 32Ω/70mW@1KHz, 0.1%
16Ω/105mW@1KHz
Frequency Response 20Hz~20KHz
Control 1 x IR EYE, 1 x IR ALL IN, 1 x TCP/IP, 1 x RS232,Front panel buttons
Temperature 0~ 50ºC
Reference Humidity 10% ~ 90%
Power Supply 100V~240V AC
Power  Consumption 110W (full load)
Dimension (W*H*D) W437xH87.8xD380(mm)
Weight 5.4Kg
