MPTP UH150S

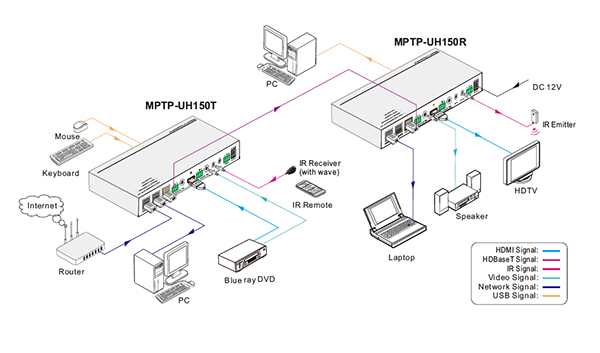

MPTP-UH150S is a HDBaseT2.0 transceiver set which contains a transmitter TPUH502PT and a receiver TPUH502PR. Compliant with HDMI2.0 & HDCP2.2, it transmits 4Kx2K@60Hz signal up to 328ft (100m), 1080P signal up to 492ft (150m) with PoH, as well as bi-directional USB/ IR/ RS232 signals via single Cat5e/Cat6 cable. This transceiver set has integrated 4 Ethernet ports so as it can also work as an Ethernet Switch, with one port connecting to LAN, other ports accessible to Ethernet. The unit is controllable via front panel DIP switch, bi-directional USB, IR& RS232. Furthermore, it also supports CEC and ARC function, making it more flexible.

Features:

Intergrated with HDBaseT technology
492ft (150m) 1080P / 328ft (100m) 4Kx2K transmission with POH.
Bandwidth is 10.2Gbps.
Support HDMI 1.4, 4Kx2K/60Hz &. 1080p 3D.
HDCP 2.2 compliant.
Aluminum design for elegant & nice cooling.

Specification

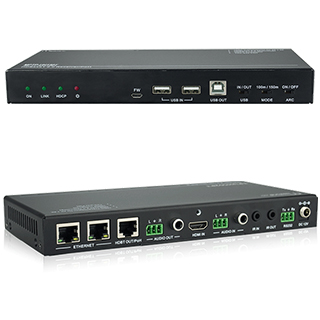

Input (MPTP-UH150ST)	1 x HDMI (female), 1 x Analog Audio (3-pin female), 1 x Coax Audio (3.5mm RCA), 2 x USB IN (Type-A),1 x IR IN (3.5mm jack), 1 x Ethernet (RJ45), 1 xRS232 (3-pin pluggable terminal block)
Output (MPTP-UH150ST)	1 x HDBT (RJ45), 1 x Analog Audio (3-pin female), 1 x Coax Audio (3.5mm RCA), 1 x USB OUT (Type-B), 1 x IR OUT (3.5mm jack), 1 x Ethernet(RJ45)

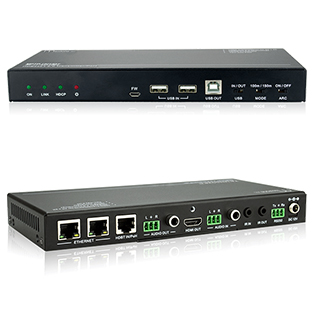

Input (MPTP-UH150SR)	1 x HDBT (RJ45), 1 x Analog Audio (3-pin female), 1 x Coax Audio (3.5mm RCA), 2 x USB IN (Type-A), 1 x IR IN (3.5mm jack), 1 x RS232 (3-pin pluggable terminal block)
Output (MPTP-UH150SR)	1 x HDMI (female), 1 x Analog Audio (3-pin female), 1 x Coax Audio (3.5mm RCA), 1 x IR OUT (3.5mm jack), 2 Ethernet(RJ45)
Signal Standard	4KX2K/60Hz & HDCP2.2
Transmission Mode	HDBaseT
Audio	HDMI Embedded Audio: PCM/Dolby Digital/DTS/DTS-HD Analog Audio: PCM Coax Audio: PCM/Dolby Digital/DTS/DTS-HD
Power	DC12V 2A,optional
EDID Management	Bypass EDID
Transmission Distance	1080P≤150m, 4Kx2K≤100m
Temperature	0~50ºC
Reference Humidity	10% ~ 90%
Power Consumption	5.7w (Tx) / 8w (Rx)
Dimension	W220XH26XD100mm
Weight	0.413Kg (Tx) / 0.425Kg (Rx)
