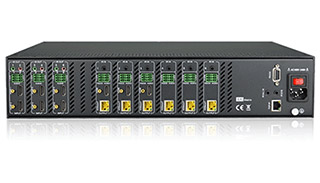

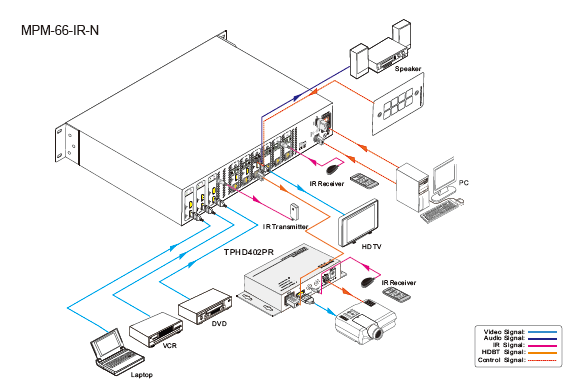

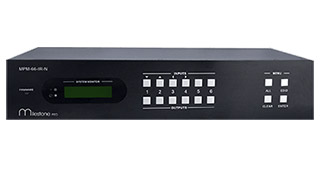

MPM-66-IR-N is a professional 4K 6x6 HDBaseT Matrix Switcher with 6 x HDMI Input (HDMI1.4 & HDCP2.2 compliant) and 6 x HDBaseT, 3 x HDMI Output with de-embedded audio, supporting 4Kx2K@60Hz & 1080P 3D, and controllable by front panel buttons, IR, RS232, or GUI. The HDBaseT outputs transmit 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The Matrix Switcher supports PoC function, which makes no need of power supply at the receiver end. It also features EDID management.

Features:

6 HDMI Input support HDMI 1.4 &HDCP2.2, and compliant with lower standards
Support manual input HDCP auto-detecting and output manual HDCP management
3 HDMI Output support HDMI1.4& HDCP1.4, transmit 4Kx2K signal for 8m
6 HDBaseT outputs transmit 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable, support PoC
Controllable via front panel, TCP/IP, and bi-directional IR& RS232
Powerful EDID management

Specification

Input	6 x HDMI (female)
Output	3 x HDMI (female), 6 x HDBaseT (RJ45)
Gain	0 dB
Video Signal	HDMI (or DVI-D)
Signal Level	T.M.D.S. 2.9V~3.3V
Transmission Distance	1080P@60Hz ≤70m, 4Kx2K@30Hz ≤40m
Bandwidth	10.2Gbps
Resolution Range	Up to 4Kx2K, 1080P 3D
Switching Speed	200ns (Max.)
EDID Management	In-built EDID data and manual EDID management
HDCP	Input: HDCP 2.2 support Output: HDCP 1.4 support
Audio Output	Analog audio(3-pin pluggable terminal block)
PCM Format	Distortion: 0.1% 32Ω/70mW@1KHz, 0.1% , 16Ω/105mW@1KHz
Frequency Response	20Hz~20KHz
Control	1 x IR EYE, 1 x IR ALL IN, 1 x TCP/IP, 1 x RS232, Front panel buttons
Temperature	0~ 50ºC
Reference Humidity	10% ~ 90%
Power Supply	100V~240V AC
Power Consumption	105W (full load)
Dimension (WHD)	437 x 87.8 x 380 mm
Weight	5.4Kg
