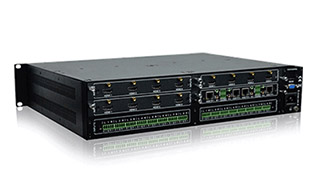

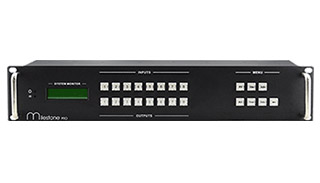

MPX88A-NT is a high−performance matrix switcher chassis for various digital and analog signals. The modular design is popular with 2 input slots & 2 output slots, and also break-away audio switching.
Features:
Support 4K
Configurable and flexible I/O with audio up to 8x8
Available with all kinds of I/O cards, HDBaseT, HDMI, optical, SDI, DVI and VGA/audio cards.
True cross point switching, any input to any output.
Ultra-switching for instantaneous display
Smart EDID management
HDCP compatible
Controllable via front, IR, RS232 and optional TCP/IP
Audio breakaway switching
Specification
Video Inputs
2slots, using MMX input cards
Video Input signal
HDBT, HDMI, optical, SDI, DVI, VGA
Video Outputs
2 slots, using MMX output cards
Video Output signal
HDBT, HDMI, optical, SDI, DVI,VGA
Audio Inputs
8 stereo audio, 5 poles captive screw connector,>10KΩ
Audio Outputs
8 stereo audio, 5 poles captive screw connector,50Ω
