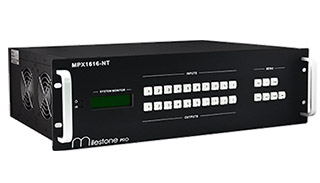

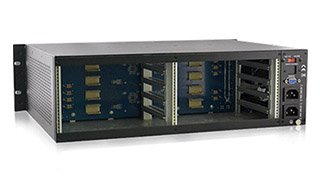

MPX1616-NT is a high−performance matrix switcher chassis for various digital and analog signals. The modular design is popular with 4 input slots & 4 output slots.
Features:
Support 4K
Configurable and flexible I/O with audio up to 16x16
Available with all kinds of I/O cards, HDBaseT, HDMI, optical, SDI, DVI and VGA/audio cards.
True cross point switching, any input to any output.
Ultra-switching for instantaneous display
Smart EDID management
HDCP compatible
Controllable via front panel button, IR, RS232 and optional TCP/IP
Specification
Video Input
4 slots, using MPX input cards
Video Input signal
HDBT, HDMI, optical, SDI, DVI,VGA
Video Output
4 slots, using MPX output cards
Video Output signal
HDBT, HDMI, optical, SDI, DVI, VGA
Controls
Buttons, IR remote, RS232 (9-pin female D connector), TCP/IP
