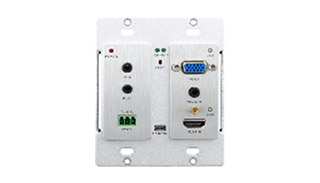

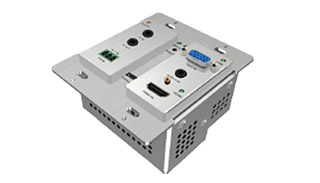

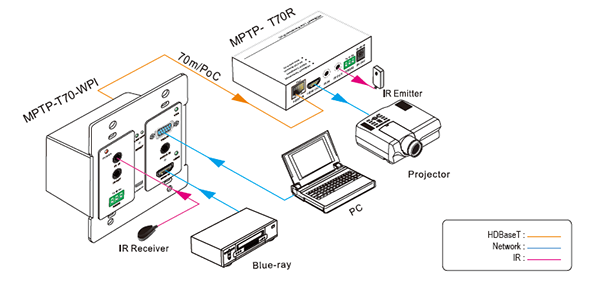

MPTP-T70-WPI is a 2 gang Decora style wall-mountable HDBaseT transmitter for HDMI or VGA/audio and RS232 & IR at 230ft (70m) transmission with PoC function. It supports Auto-switching between the inputs.

Features:

Integrated with HDBaseT technology.
230ft (70m) transmission with PoC function.
HDMI , VGA with audio input selectable.
Bi-directional IR & RS232 pass through.
Built in scaling function, output resolution up to 4K.
Auto switching between input sources.
LEDs for status checking & USB for firmware update.
Aluminum design for elegant & nice cooling.

Specification

Input	1HDMI（HDMIfemale）,1VGA（VGAfemale）,1AUDIO（3.5mmmini jack）,1RS232（3Pcaptive screw connector）,1IR（3.5mmmini jack）
Output	1HDBaseT（RJ45）,1IR（3.5mmmini jack）
Transmission Mode	HDBaseT
Resolution	Upto 1080P for VGA; 800x600~1920x1200,3D&4Kx2K for HDMI
Gain	0dB～10dB@100MHz
Transmission Distance	70mwith PoC
Differential Phasic Erro	±10°@135MHz-100M
Bandwidth	10.2Gbps
Return Lost	<-30dB@5KHz
HDMI Standard	SupportHDMI1.4 & HDCP
Min~ Max level	0.3V~1.45Vp-p;75Ω
Power Supply	24VDC;9.6W
Temperature	﹣20～ ﹢60℃
Humidity	10%-90%
Chassis Dimension	Decora style two gang
