MP WPB 8 & MP WPS 8

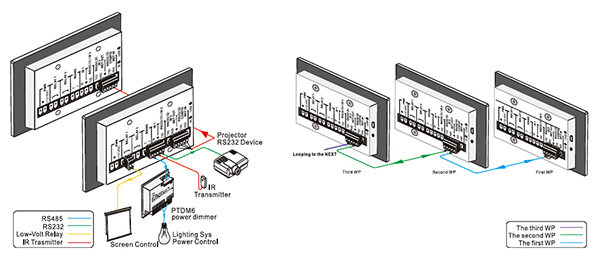

MP-WPS-8 are control panel with 8 programmable buttons in 1 gang size, each button supports page and toggle setting. It has RS232, RS485, IR & relay control ports, availing to control Milestone Pro products and any other 3rd party devices. There are 2 colors for option.

Features:

8 backlit buttons in 1 gang size.
Offers multiple controls via RS232, RS485, IR, and relay.
Support IR learning
Support page, toggle, compare and delay setting.
Customizable and changeable labels
Button light adjustable.
ID loop function, max up to 99pcs WP for control.
Firmware updatable via USB

Specification

Program Port	USB or RS232
Program Baud Rate And Protocol	9600 baud, 8 data bits, 1 stop bit, no parity
Software	PS-WP

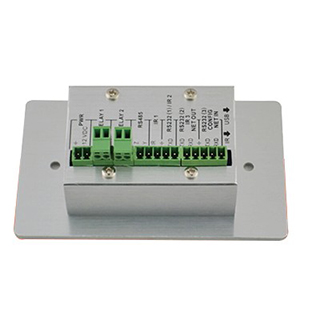

Output Port	3 RS232, 1 RS485, 3 Infrared, 2 Relay
Frequency Response	20Hz ~20KHz

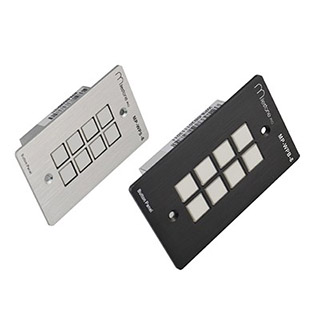

Panel Color	Black/Silver
Power Supply	12V DC ; 1W
"Temperature/ Humidity	0 ~ 50°C, 10% ~ 90%
Chassis Dimension	US single-gang, 114x70x28mm
