XGA Multimedia Splitters BACK

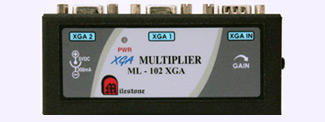

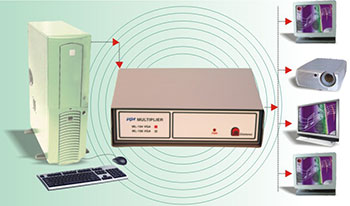

Milestone's "XGA Multimedia Spliter" is a unit whereby you can send your PC's VGA output to as many as 2/4/8/12 monitors with ability for daizy chain for multiple monitors. This unit is ideal for your presentation to reach wide audience at a distance of 150 meters away & many more application.
Features:
Simultaneous monitor / projector display. Transmission distance 150 meters for individual outputs.
Compatible to multisync, SVGA, VGA & EGA monitors, LCD projectors. Gain controlled outputs for optimal viewing.
1 PC to 2/4/8/12 VGA output, by using it's daisy chain ability one can attach up to 200 monitors. Compact size and easy to carry.
Applications:
Multimedia demo Auditorium presentation and conference.
Public broadcasting and stock market information. Educational i.e. classroom instructions.
Long range transmission for easy access to distant viewers.
Technical Specifications:
I/O Interface: (A) TTL Compatible: V - Sync & H - Sync
(B) Analog Signal: Red, Green, Blue Vide

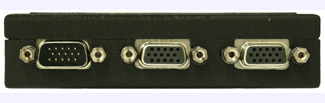

Input Connectors: D type 15 pin Male connector
Output Connectors: D type 15 pin Female connector
LED indication: Power On.
VGA O/P Control: Yes Gain Controlled Output
Operating distance: 150mtrs
Mains input: AC 230V, 5 Amp.
Dimensions in (mm) : ML102 ML 104 ML 108
100 x 105 x 45 182 x 130 x 54 290 x 130 x 54
Max resolution: 1600 x 1280
V-Frequency: 43- 120 Hz
H-Frequency: 30- 100 KHz
Video Band Width: 500 MHz
Weight: 1000grams/ 1800grams / 2800grams
Models Available:
ML102 VGA
ML104 VGA
ML108 VGA
ML1016 VGA
