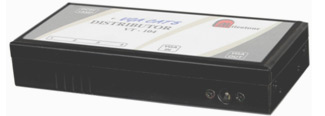

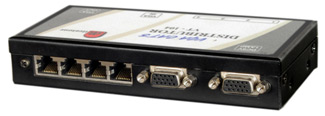

VGA over CAT-5 (VT104) MULTIPLIER BACK
VGA OVER CAT-5 (VT104) splitter is a unit whereby you can extend 4 Projector / PLASMA / LCD / TFT / VGA device display up to 150 meter (450 feet) from the main PC or laptop on a very cheap CAT-5 or CAT-6* cables. The ultimate out of band solution for the last step in digital signage set up. The VGA Extenders are quicker and most efficient way to more multimedia from main device to displays.
Features:
Distribution of any type of display over flexible CAT-5 / CAT-6 cable. High Resolution Support depending on the length up to 1600x1200 @ 75 Hz
Extend display up to 150 Meter / 490 feet. Model: VT 104 (1 in 4 out)
One year Warranty.
Technical Specifications:
Resolution Up to 1024 x 768 / XGA up to 150 meter
Input /Output Analog Signals RED, Green, Blue 0.7V, P-P @ 75 ohm.
Transmitter inputs D-Sub 15 Female input local out and CAT-5 out
Receiver outputs D-Sub 15 Female output and CAT-5 in
Sync TTL Compatible.
Shipping Weight 1.5 Kg.
Operating Temperature 5oC to 40oC
Storage Temperature -40oC to 70oC
Dimension of Splitter 100mm x 108mm x 45mm x 1 splitter
Dimension of Receiver 3.9" x 4.25"x 1.77" x 4 UNIT
Power 230V A.C.
