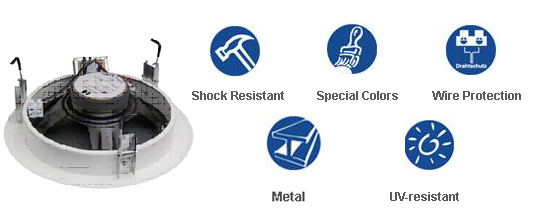

| DL 10-200/T (The Powerful Sound ) |
 |
| The modern ceiling speaker made of powder coated metal in RAL 9010 with high efficiency and high quality 200 mm full range speaker. |
| Features : |
 Spring clamps with cropped spring, increased clamp force and shortened tension distance enables quick and easy mounting. A plain installation in false ceilings won't cause problems anymore. |
| The DL 10-200/T is certified with fire protection class B2 according to DIN 4102, part 8 Ωf the component part test and DIN 4102, part 1 of the B2-test for construction material. All metal versions of our products have successfully passed these building material tests, and can therefore be classified as fire resistant. The test consisted of installing the speakers with fire safety box in a ceiling (same flame retardant material) and heating them at a temperature of 580° to over 1000° C. |
| The optional fire dome F 200 for higher passive security. The fire dome prevents the suction effect in false ceilings in case of fire. |
| You can order all ceiling speakers in different RAL-colours at surcharge. |
|
| Technical Specifications: |
| Technical Specifications |
DL 10-200/T |
| Power |
10 / 6 / 3 / 1.5W |
| Frequency Range |
100-19,000 Hz |
| SPL 1W / 1m |
94.5dB |
| SPL Pmax / 1m |
104.5dB |
| Dimensions |
267 X 100mm |
| Ceiling Cut-out |
238mm |
| Temperature Range |
-200 C to 800 C |
| Dispersion Angle (-10dB) |
1780 (H) / 1780 (V) |
| Weight |
1.8 Kg. |
| Mounting |
Quick fit mounting |
| Colour |
RAL 9010 |
|
| |
