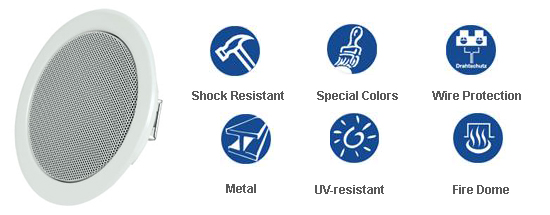

DL 06-165T (For Universal Use! -Metal Ceiling Speakers)
The modern metal ceiling speaker DL 10-165/T made of powder-coated metal, alternatively in RAL 9010 (white) high-quality 165mm full range speaker for universal use.
Features :
Spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows quick and easy mounting.
Plain installation in false ceilings won't cause problems anymore.
You can order all ceiling speakers in different RAL-colours at a surcharge.
The optional fire dome F165 increases passive security.
RoHS Compliant.
Technical Specifications:
Technical Specifications DL 10-165/T
Power 10 / 6 / 3 / 1.5W
Frequency Range 100-17000 Hz
SPL 1W / 1m 97.5dB
SPL Pmax / 1m 107.5dB
Dimensions 220 X 100mm
Ceiling Cut-out 197mm
Temperature Range -200 to +800C
Dispersion Angle (-10dB) 1770 (H) / 1770 (V)
Weight 1.35 Kg.
Mounting Wall mounting Bracket
Colour White
