| DL 10-165/T Plus (The Sound Champions ) |
 |

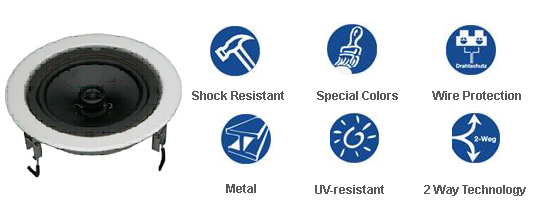

| The ceiling speaker DL 10-165/T Plus made of powder-coated metal in RAL 9010 (white) offers an excellent sound because of the modern 2-way technology. |
| Features : |
 These high quality speakers have a very low installation depth combining the powerful sound with easy handling. |
| The mounting system has been improved further: Spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows quick and easy mounting. |
| Plain installation in false ceilings won't cause problems anymore. |
| You can order all ceiling speakers in different RAL-colours at a surcharge with fixed minimum qty. |
| 2-way technology with balanced frequency range. |
|
| Technical Specifications: |
| Technical Specifications |
DL 10-165/T Plus |
| Power |
10 / 6 / 3 / 1.5W |
| Frequency Range |
100-17000 Hz |
| SPL 1W / 1m |
97.5dB |
| SPL Pmax / 1m |
107.5dB |
| Dimensions |
220 X 100mm |
| Ceiling Cut-out |
197mm |
| Temperature Range |
-200 C to 800 C |
| Dispersion Angle (-10dB) |
1770 (H) / 1770 (V) |
| Weight |
1.35 Kg. |
| Mounting |
Wall mounting Bracket |
| Colour |
White |
|
| |
